H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

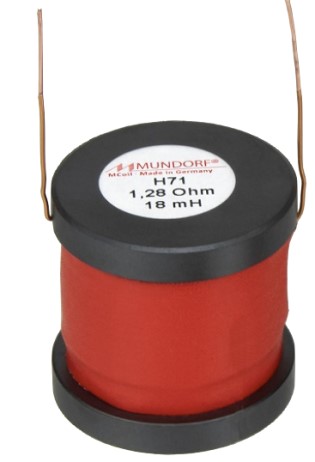

Mundorf Drum-core coil (H coil, Mcoil H)

Mundorf Drum-core coil (H coil, Mcoil H)
Enlarge

MCoil Drum-Core coils made from oxygenfree copper (OFC) round-wire have been developed for mid, low and parallel applications for which compact dimensions, a low basic distortion level as well as the lowest possible internal resistance and a reasonable value for money ratio are of key importance.

The fine properties of the H series can be further improved by applying Baked Wire Treatment as introduced with BH series.

The tonal quality of these coils is a convincing blend of the typical harmoniously-neutral sound of solid core copper round-wire and the natural vitality and enhanced tonal dynamic of HP3616.

The fine properties of the H series can be further improved by applying Baked Wire Treatment as introduced with BH series.

Please note: The power values Pmax in the following tables were determined at 20 degrees Celsius ambient temperature and free convection. They are just a guideline and - since we are not the manufacturers - cannot be guaranteed by us.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H50

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h50-068 0.68 0.36 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-082 0.82 0.39 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-100 1.0 0.45 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-120 1.2 0.49 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-150 1.5 0.56 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-180 1.8 0.61 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-200 2.0 0.65 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-220 2.2 0.69 0.50      -           -      EUR 5,10 excl. VAT: € 4.29 / $ 4.89
M-h50-270 2.7 0.78 0.50      -           -      EUR 5,20 excl. VAT: € 4.37 / $ 4.98
M-h50-300 3.0 0.78 0.50      -           -      EUR 5,20 excl. VAT: € 4.37 / $ 4.98
M-h50-330 3.3 0.88 0.50      -           -      EUR 5,20 excl. VAT: € 4.37 / $ 4.98
M-h50-390 3.9 0.96 0.50      -           -      EUR 9,80 excl. VAT: € 8.24 / $ 9.39
M-h50-560 5.6 1.1 0.50      -           -      EUR 10,70 excl. VAT: € 8.99 / $ 10.25
M-h50-470 4.7 1.0 0.50      -           -      EUR 10,30 excl. VAT: € 8.66 / $ 9.87
M-h50-680 6.8 1.3 0.50      -           -      EUR 11,30 excl. VAT: € 9.50 / $ 10.83
M-h50-820 8.2 1.6 0.50      -           -      EUR 11,70 excl. VAT: € 9.83 / $ 11.21
M-h50-1000 10.0 1.8 0.50      -           -      EUR 12,30 excl. VAT: € 10.34 / $ 11.78
M-h50-1200 12.0 2.0 0.50      -           -      EUR 12,60 excl. VAT: € 10.59 / $ 12.07
M-h50-1500 15.0 2.3 0.50      -           -      EUR 13,60 excl. VAT: € 11.43 / $ 13.03
M-h50-1800 18.0 2.6 0.50      -           -      EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-h50-2200 22.0 3.0 0.50      -           -      EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-h50-2700 27.0 3.4 0.50      -           -      EUR 16,60 excl. VAT: € 13.95 / $ 15.90
M-h50-3300 33.0 3.8 0.50      -           -      EUR 11,40 excl. VAT: € 9.58 / $ 10.92
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h71-100 1.0 0.25 0.71 48 W 40 x 38 EUR 7,80 excl. VAT: € 6.55 / $ 7.47
M-h71-120 1.2 0.27 0.71 47 W 40 x 38 EUR 8,30 excl. VAT: € 6.97 / $ 7.95
M-h71-150 1.5 0.31 0.71 43 W 40 x 38 EUR 8,80 excl. VAT: € 7.39 / $ 8.43
M-h71-180 1.8 0.34 0.71 41 W 40 x 38 EUR 9,30 excl. VAT: € 7.82 / $ 8.91
M-h71-200 2.0 0.36 0.71 0.0 W 40 x 38 EUR 7,00 excl. VAT: € 5.88 / $ 6.71
M-h71-220 2.2 0.38 0.71 41 W 40 x 38 EUR 9,80 excl. VAT: € 8.24 / $ 9.39
M-h71-270 2.7 0.42 0.71 39 W 40 x 38 EUR 10,30 excl. VAT: € 8.66 / $ 9.87
M-h71-300 3.0 0.44 0.71 39 W 40 x 38 EUR 7,60 excl. VAT: € 6.39 / $ 7.28
M-h71-330 3.3 0.47 0.71 37 W 40 x 38 EUR 10,70 excl. VAT: € 8.99 / $ 10.25
M-h71-390 3.9 0.50 0.71 36 W 40 x 38 EUR 11,00 excl. VAT: € 9.24 / $ 10.54
M-h71-470 4.7 0.46 0.71 41 W 40 x 38 EUR 11,40 excl. VAT: € 9.58 / $ 10.92
M-h71-560 5.6 0.62 0.71 32 W 40 x 38 EUR 12,00 excl. VAT: € 10.08 / $ 11.50
M-h71-680 6.8 0.70 0.71 30 W 40 x 38 EUR 12,40 excl. VAT: € 10.42 / $ 11.88
M-h71-820 8.2 0.80 0.71 27 W 40 x 38 EUR 13,30 excl. VAT: € 11.18 / $ 12.74
M-h71-1000 10.0 0.87 0.71 27 W 40 x 38 EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-h71-1200 12.0 0.98 0.71 24 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-h71-1500 15.0 1.2 0.71 22 W 40 x 38 EUR 17,50 excl. VAT: € 14.71 / $ 16.76
M-h71-1800 18.0 1.3 0.71 21 W 40 x 38 EUR 18,50 excl. VAT: € 15.55 / $ 17.72
M-h71-2200 22.0 1.5 0.71 18 W 40 x 38 EUR 19,50 excl. VAT: € 16.39 / $ 18.68
M-h71-2700 27.0 1.7 0.71 17 W 40 x 38 EUR 21,50 excl. VAT: € 18.07 / $ 20.60
M-h71-3300 33.0 1.9 0.71 15 W 40 x 38 EUR 23,40 excl. VAT: € 19.66 / $ 22.42
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h100-068 0.68 0.11 1.00 177 W 40 x 38 EUR 8,70 excl. VAT: € 7.31 / $ 8.33
M-h100-082 0.82 0.12 1.00 167 W 40 x 38 EUR 8,70 excl. VAT: € 7.31 / $ 8.33
M-h100-100 1.0 0.13 1.00 159 W 40 x 38 EUR 11,70 excl. VAT: € 9.83 / $ 11.21
M-h100-120 1.2 0.15 1.00 142 W 40 x 38 EUR 12,30 excl. VAT: € 10.34 / $ 11.78
M-h100-150 1.5 0.17 1.00 129 W 40 x 38 EUR 12,60 excl. VAT: € 10.59 / $ 12.07
M-h100-180 1.8 0.19 1.00 118 W 40 x 38 EUR 13,60 excl. VAT: € 11.43 / $ 13.03
M-h100-200 2.0 0.20 1.00 115 W 40 x 38 EUR 10,70 excl. VAT: € 8.99 / $ 10.25
M-h100-220 2.2 0.21 1.00 111 W 40 x 38 EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-h100-270 2.7 0.24 1.00 100 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-h100-300 3.0 0.25 1.00 99 W 40 x 38 EUR 12,60 excl. VAT: € 10.59 / $ 12.07
M-h100-330 3.3 0.27 1.00 93 W 40 x 38 EUR 16,20 excl. VAT: € 13.61 / $ 15.52
M-h100-390 3.9 0.30 1.00 88 W 40 x 38 EUR 17,20 excl. VAT: € 14.45 / $ 16.48
M-h100-470 4.7 0.34 1.00 82 W 40 x 38 EUR 18,10 excl. VAT: € 15.21 / $ 17.34
M-h100-560 5.6 0.39 1.00 74 W 40 x 38 EUR 19,10 excl. VAT: € 16.05 / $ 18.30
M-h100-680 6.8 0.46 1.00 64 W 40 x 38 EUR 21,00 excl. VAT: € 17.65 / $ 20.12
M-h100-820 8.2 0.54 1.00 57 W 40 x 38 EUR 25,40 excl. VAT: € 21.34 / $ 24.33
M-h100-1000 10.0 0.64 1.00 58 W 56 x 35 EUR 26,40 excl. VAT: € 22.18 / $ 25.29
M-h100-1200 12.0 0.71 1.00 59 W 56 x 35 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-h100-1500 15.0 0.83 1.00 53 W 56 x 35 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h125-068 0.68 0.09 1.25 206 W 40 x 38 EUR 13,60 excl. VAT: € 11.43 / $ 13.03
M-h125-082 0.82 0.10 1.25 197 W 40 x 38 EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-h125-100 1.0 0.11 1.25 190 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-h125-120 1.2 0.12 1.25 184 W 40 x 38 EUR 16,60 excl. VAT: € 13.95 / $ 15.90
M-h125-150 1.5 0.12 1.25 207 W 40 x 38 EUR 18,50 excl. VAT: € 15.55 / $ 17.72
M-h125-180 1.8 0.14 1.25 191 W 40 x 38 EUR 19,50 excl. VAT: € 16.39 / $ 18.68
M-h125-200 2.0 0.15 1.25 185 W 40 x 38 EUR 17,20 excl. VAT: € 14.45 / $ 16.48
M-h125-220 2.2 0.17 1.25 167 W 40 x 38 EUR 20,50 excl. VAT: € 17.23 / $ 19.64
M-h125-270 2.7 0.19 1.25 159 W 56 x 35 EUR 21,50 excl. VAT: € 18.07 / $ 20.60
M-h125-300 3.0 0.20 1.25 156 W 56 x 35 EUR 19,70 excl. VAT: € 16.55 / $ 18.87
M-h125-330 3.3 0.21 1.25 152 W 56 x 35 EUR 22,40 excl. VAT: € 18.82 / $ 21.46
M-h125-390 3.9 0.24 1.25 141 W 56 x 35 EUR 23,40 excl. VAT: € 19.66 / $ 22.42
M-h125-470 4.7 0.29 1.25 147 W 56 x 35 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) H140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h140-100 1.0 0.08 1.4 339 W 40 x 38 EUR 17,20 excl. VAT: € 14.45 / $ 16.48
M-h140-120 1.2 0.09 1.4 322 W 40 x 38 EUR 18,10 excl. VAT: € 15.21 / $ 17.34
M-h140-150 1.5 0.11 1.4 280 W 40 x 38 EUR 19,10 excl. VAT: € 16.05 / $ 18.30
M-h140-180 1.8 0.12 1.4 271 W 40 x 38 EUR 21,00 excl. VAT: € 17.65 / $ 20.12
M-h140-200 2.0 0.13 1.4 264 W 40 x 38 EUR 20,50 excl. VAT: € 17.23 / $ 19.64
M-h140-220 2.2 0.14 1.4 259 W 40 x 38 EUR 22,90 excl. VAT: € 19.24 / $ 21.94
M-h140-270 2.7 0.17 1.4 232 W 56 x 35 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-h140-300 3.0 0.19 1.4 224 W 56 x 35 EUR 26,40 excl. VAT: € 22.18 / $ 25.29
M-h140-330 3.3 0.19 1.4 232 W 56 x 35 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
M-h140-390 3.9 0.22 1.4 210 W 56 x 35 EUR 31,30 excl. VAT: € 26.30 / $ 29.98
M-h140-470 4.7 0.26 1.4 187 W 56 x 35 EUR 33,20 excl. VAT: € 27.90 / $ 31.81
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Audaphon air coils L7 L10 L13 core coils M12 M14 Mundorf Luft L100 L140 H coreH71 H100 H140 Monacor Trafo

Mundorf drum (H core) coil H112 and H132

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-h132-560 5.6 0.47 1.32 116 W 56 x 35 EUR 37,10 excl. VAT: € 31.18 / $ 35.54
M-h112-820 8.2 0.30 1.12 182 W 56 x 35 EUR 37,10 excl. VAT: € 31.18 / $ 35.54
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

Mundorf baked varnish H core coil

The microphonics effect (interaction of current flowing through the coil -> magnetic field -> -> mechanical movement of coil wires -> and the resulting induced voltage in the coil) adds information to the original signal. Details of the original signal are overlaid and alienated; the music lacks three-dimensionality and transparency. To avoid this, the wires should be more secured in place.

This can be done by


H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH71

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bh71-100 1.0 0.25 0.71 58 W 40 x 38 EUR 9,80 excl. VAT: € 8.24 / $ 9.39
M-bh71-120 1.2 0.27 0.71 56 W 40 x 38 EUR 10,30 excl. VAT: € 8.66 / $ 9.87
M-bh71-150 1.5 0.31 0.71 53 W 40 x 38 EUR 10,70 excl. VAT: € 8.99 / $ 10.25
M-bh71-180 1.8 0.34 0.71 50 W 40 x 38 EUR 11,30 excl. VAT: € 9.50 / $ 10.83
M-bh71-200 2.0 0.36 0.71 49 W 40 x 38 EUR 8,90 excl. VAT: € 7.48 / $ 8.53
M-bh71-220 2.2 0.38 0.71 50 W 40 x 38 EUR 11,70 excl. VAT: € 9.83 / $ 11.21
M-bh71-270 2.7 0.42 0.71 47 W 40 x 38 EUR 12,30 excl. VAT: € 10.34 / $ 11.78
M-bh71-300 3.0 0.44 0.71 47 W 40 x 38 EUR 9,50 excl. VAT: € 7.98 / $ 9.10
M-bh71-330 3.3 0.47 0.71 45 W 40 x 38 EUR 12,60 excl. VAT: € 10.59 / $ 12.07
M-bh71-390 3.9 0.58 0.71 37 W 40 x 38 EUR 13,60 excl. VAT: € 11.43 / $ 13.03
M-bh71-470 4.7 0.64 0.71 36 W 40 x 38 EUR 14,20 excl. VAT: € 11.93 / $ 13.60
M-bh71-560 5.6 0.62 0.71 39 W 40 x 38 EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-bh71-680 6.8 0.70 0.71 36 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-bh71-820 8.2 0.80 0.71 33 W 40 x 38 EUR 16,60 excl. VAT: € 13.95 / $ 15.90
M-bh71-1000 10.0 0.87 0.71 32 W 40 x 38 EUR 17,50 excl. VAT: € 14.71 / $ 16.76
M-bh71-1200 12.0 0.98 0.71 30 W 40 x 38 EUR 18,50 excl. VAT: € 15.55 / $ 17.72
M-bh71-1500 15.0 1.2 0.71 27 W 40 x 38 EUR 19,50 excl. VAT: € 16.39 / $ 18.68
M-bh71-1800 18.0 1.3 0.71 25 W 40 x 38 EUR 21,50 excl. VAT: € 18.07 / $ 20.60
M-bh71-2200 22.0 1.5 0.71 22 W 40 x 38 EUR 23,40 excl. VAT: € 19.66 / $ 22.42
M-bh71-2700 27.0 1.7 0.71 20 W 40 x 38 EUR 25,40 excl. VAT: € 21.34 / $ 24.33
M-bh71-3300 33.0 2.0 0.71 18 W 40 x 38 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH100

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bh100-100 1.0 0.13 1.00 192 W 40 x 38 EUR 13,60 excl. VAT: € 11.43 / $ 13.03
M-bh100-120 1.2 0.15 1.00 171 W 40 x 38 EUR 14,20 excl. VAT: € 11.93 / $ 13.60
M-bh100-150 1.5 0.17 1.00 155 W 40 x 38 EUR 14,60 excl. VAT: € 12.27 / $ 13.99
M-bh100-180 1.8 0.18 1.00 151 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-bh100-200 2.0 0.20 1.00 139 W 40 x 38 EUR 12,60 excl. VAT: € 10.59 / $ 12.07
M-bh100-220 2.2 0.21 1.00 134 W 40 x 38 EUR 16,60 excl. VAT: € 13.95 / $ 15.90
M-bh100-270 2.7 0.24 1.00 121 W 40 x 38 EUR 17,50 excl. VAT: € 14.71 / $ 16.76
M-bh100-300 3.0 0.25 1.00 120 W 40 x 38 EUR 14,80 excl. VAT: € 12.44 / $ 14.18
M-bh100-330 3.3 0.26 1.00 117 W 40 x 38 EUR 18,50 excl. VAT: € 15.55 / $ 17.72
M-bh100-390 3.9 0.30 1.00 106 W 40 x 38 EUR 19,50 excl. VAT: € 16.39 / $ 18.68
M-bh100-470 4.7 0.34 1.00 99 W 40 x 38 EUR 21,10 excl. VAT: € 17.73 / $ 20.21
M-bh100-560 5.6 0.39 1.00 89 W 40 x 38 EUR 22,40 excl. VAT: € 18.82 / $ 21.46
M-bh100-680 6.8 0.46 1.00 77 W 40 x 38 EUR 26,40 excl. VAT: € 22.18 / $ 25.29
M-bh100-820 8.2 0.54 1.00 68 W 40 x 38 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-bh100-1000 10.0 0.63 1.00 70 W 56 x 35 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
M-bh100-1200 12.0 0.72 1.00 69 W 56 x 35 EUR 31,30 excl. VAT: € 26.30 / $ 29.98
M-bh100-1500 15.0 0.83 1.00 63 W 56 x 35 EUR 34,20 excl. VAT: € 28.74 / $ 32.76
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH125

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bh125-068 0.68 0.09 1.25 206 W 40 x 38 EUR 15,60 excl. VAT: € 13.11 / $ 14.94
M-bh125-082 0.82 0.10 1.25 197 W 40 x 38 EUR 16,60 excl. VAT: € 13.95 / $ 15.90
M-bh125-100 1.0 0.11 1.25 190 W 40 x 38 EUR 17,50 excl. VAT: € 14.71 / $ 16.76
M-bh125-120 1.2 0.12 1.25 184 W 40 x 38 EUR 18,50 excl. VAT: € 15.55 / $ 17.72
M-bh125-150 1.5 0.12 1.25 207 W 40 x 38 EUR 19,50 excl. VAT: € 16.39 / $ 18.68
M-bh125-180 1.8 0.14 1.25 191 W 40 x 38 EUR 21,50 excl. VAT: € 18.07 / $ 20.60
M-bh125-200 2.0 0.15 1.25 185 W 40 x 38 EUR 20,10 excl. VAT: € 16.89 / $ 19.26
M-bh125-220 2.2 0.17 1.25 167 W 40 x 38 EUR 23,40 excl. VAT: € 19.66 / $ 22.42
M-bh125-270 2.7 0.19 1.25 159 W 56 x 35 EUR 25,40 excl. VAT: € 21.34 / $ 24.33
M-bh125-300 3.0 0.20 1.25 156 W 56 x 35 EUR 22,40 excl. VAT: € 18.82 / $ 21.46
M-bh125-330 3.3 0.21 1.25 152 W 56 x 35 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-bh125-390 3.9 0.24 1.25 141 W 56 x 35 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
M-bh125-470 4.7 0.29 1.25 147 W 56 x 35 EUR 33,20 excl. VAT: € 27.90 / $ 31.81
M-bh125-560 5.6 0.33 1.25 138 W 56 x 35 EUR 35,20 excl. VAT: € 29.58 / $ 33.72
M-bh125-680 6.8 0.37 1.25 132 W 56 x 35 EUR 37,10 excl. VAT: € 31.18 / $ 35.54
M-bh125-820 8.2 0.42 1.25 123 W 56 x 35 EUR 39,10 excl. VAT: € 32.86 / $ 37.46
M-bh125-1000 10.0 0.48 1.25 114 W 56 x 35 EUR 42,00 excl. VAT: € 35.29 / $ 40.24
M-bh125-1200 12.0 0.54 1.25 107 W 56 x 35 EUR 45,00 excl. VAT: € 37.82 / $ 43.11
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH140

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bh140-100 1.0 0.08 1.4 339 W 40 x 38 EUR 19,10 excl. VAT: € 16.05 / $ 18.30
M-bh140-120 1.2 0.09 1.4 322 W 40 x 38 EUR 20,50 excl. VAT: € 17.23 / $ 19.64
M-bh140-150 1.5 0.10 1.4 308 W 40 x 38 EUR 21,00 excl. VAT: € 17.65 / $ 20.12
M-bh140-180 1.8 0.12 1.4 271 W 40 x 38 EUR 22,40 excl. VAT: € 18.82 / $ 21.46
M-bh140-200 2.0 0.13 1.4 264 W 40 x 38 EUR 22,10 excl. VAT: € 18.57 / $ 21.17
M-bh140-220 2.2 0.14 1.4 259 W 40 x 38 EUR 23,90 excl. VAT: € 20.08 / $ 22.90
M-bh140-270 2.7 0.17 1.4 232 W 56 x 35 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
M-bh140-300 3.0 0.18 1.4 237 W 56 x 35 EUR 28,30 excl. VAT: € 23.78 / $ 27.11
M-bh140-330 3.3 0.19 1.4 232 W 56 x 35 EUR 31,30 excl. VAT: € 26.30 / $ 29.98
M-bh140-390 3.9 0.22 1.4 210 W 56 x 35 EUR 33,20 excl. VAT: € 27.90 / $ 31.81
M-bh140-470 4.7 0.26 1.4 187 W 56 x 35 EUR 36,20 excl. VAT: € 30.42 / $ 34.68
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Drum Core coil (H core) BH180

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-bh180-039 0.39 0.04 1.8 837 W 40 x 38 EUR 25,40 excl. VAT: € 21.34 / $ 24.33
M-bh180-047 0.47 0.05 1.8 730 W 40 x 38 EUR 26,40 excl. VAT: € 22.18 / $ 25.29
M-bh180-056 0.56 0.05 1.8 791 W 40 x 38 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-bh180-068 0.68 0.06 1.8 710 W 40 x 38 EUR 28,30 excl. VAT: € 23.78 / $ 27.11
M-bh180-082 0.82 0.06 1.8 761 W 40 x 38 EUR 29,30 excl. VAT: € 24.62 / $ 28.07
M-bh180-100 1.0 0.07 1.8 696 W 40 x 38 EUR 31,30 excl. VAT: € 26.30 / $ 29.98
M-bh180-120 1.2 0.08 1.8 647 W 40 x 38 EUR 33,20 excl. VAT: € 27.90 / $ 31.81
M-bh180-150 1.5 0.09 1.8 609 W 40 x 38 EUR 35,20 excl. VAT: € 29.58 / $ 33.72
M-bh180-180 1.8 0.10 1.8 578 W 40 x 38 EUR 38,10 excl. VAT: € 32.02 / $ 36.50
M-bh180-200 2.0 0.11 1.8 537 W 40 x 38 EUR 32,20 excl. VAT: € 27.06 / $ 30.85
M-bh180-220 2.2 0.12 1.8 507 W 40 x 38 EUR 42,00 excl. VAT: € 35.29 / $ 40.24
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Hepta Strand LH45 with H core

Mundorf Drum-core coil (H coil, Mcoil H), Mundorf Hepta Strand LH45 with H core

If the air core coils have too high resistance or do not provide the required power, the H-core coils LH45 and LH60 offer a solution.

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-LH45-100 1.0 0.12 7x0.45 176 W 40 x 37 - not available (_)
M-lh45-120 1.2 0.14 7x0.45 174 W 40 x 37 EUR 23,40 excl. VAT: € 19.66 / $ 22.42
M-lh45-150 1.5 0.16 7x0.45 174 W 40 x 37 EUR 25,40 excl. VAT: € 21.34 / $ 24.33
M-lh45-180 1.8 0.18 7x0.45 175 W 40 x 37 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-lh45-200 2.0 0.21 7x0.45 169 W 40 x 37 EUR 22,40 excl. VAT: € 18.82 / $ 21.46
M-lh45-220 2.2 0.21 7x0.45 93 W 51 x 51 EUR 31,30 excl. VAT: € 26.30 / $ 29.98
M-lh45-270 2.7 0.24 7x0.45 114 W 51 x 51 EUR 33,20 excl. VAT: € 27.90 / $ 31.81
M-lh45-300 3.0 0.26 7x0.45 119 W 51 x 51 EUR 27,30 excl. VAT: € 22.94 / $ 26.15
M-lh45-330 3.3 0.27 7x0.45 136 W 51 x 51 EUR 36,20 excl. VAT: € 30.42 / $ 34.68
M-lh45-390 3.9 0.31 7x0.45 139 W 51 x 51 EUR 39,10 excl. VAT: € 32.86 / $ 37.46
M-lh45-470 4.7 0.34 7x0.45 148 W 51 x 51 EUR 44,00 excl. VAT: € 36.97 / $ 42.15
M-lh45-560 5.6 0.40 7x0.45 139 W 51 x 51 EUR 48,90 excl. VAT: € 41.09 / $ 46.85
M-lh45-680 6.8 0.53 7x0.45 115 W 51 x 51 EUR 53,80 excl. VAT: € 45.21 / $ 51.54
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.

H core coils H50 H71 H100 H125 H140 baked varnish BH71 BH100 BH125 BH140 BH180 hepta strand LH45 LH60

Mundorf Hepta Strand LH60 with H core

L denotes inductance, R the DC resistance, D the diameter, Le the length, Wire-W the width of the wire, DxH the diameter and the height.

Product ID L/mH R/Ohm Wire-
D/mm
Pmax*)
8Ohm
Coil Size
(DxH/mm)
Price
M-LH60-010 0.10 0.02 7x0.60 724 W 40 x 38 - not available (_)
M-LH60-012 0.12 0.02 7x0.60 814 W 40 x 38 - not available (_)
M-LH60-015 0.15 0.03 7x0.60 603 W 40 x 38 - not available (_)
M-LH60-018 0.18 0.03 7x0.60 664 W 40 x 38 - not available (_)
M-LH60-022 0.22 0.03 7x0.60 724 W 40 x 38 - not available (_)
M-LH60-027 0.27 0.04 7x0.60 588 W 40 x 38 - not available (_)
M-LH60-033 0.33 0.04 7x0.60 633 W 40 x 38 - not available (_)
M-LH60-039 0.39 0.04 7x0.60 679 W 40 x 38 - not available (_)
M-LH60-047 0.47 0.05 7x0.60 579 W 40 x 38 EUR 31,90 excl. VAT: € 26.81 / $ 30.56
M-LH60-056 0.56 0.06 7x0.60 513 W 40 x 38 - not available (_)
M-LH60-068 0.68 0.06 7x0.60 543 W 40 x 38 EUR 32,90 excl. VAT: € 27.65 / $ 31.52
M-LH60-082 0.82 0.07 7x0.60 491 W 40 x 38 EUR 33,90 excl. VAT: € 28.49 / $ 32.48
M-LH60-10 1.0 0.09 7x0.60 507 W 51 x 51 EUR 34,90 excl. VAT: € 29.33 / $ 33.43
M-LH60-12 1.2 0.10 7x0.60 469 W 51 x 51 EUR 36,90 excl. VAT: € 31.01 / $ 35.35
M-LH60-15 1.5 0.14 7x0.60 348 W 51 x 51 EUR 38,90 excl. VAT: € 32.69 / $ 37.27
M-LH60-18 1.8 0.15 7x0.60 345 W 51 x 51 EUR 40,90 excl. VAT: € 34.37 / $ 39.18
M-LH60-20 2.0 0.16 7x0.60 331 W 51 x 51 EUR 42,90 excl. VAT: € 36.05 / $ 41.10
M-LH60-22 2.2 0.17 7x0.60 322 W 51 x 51 EUR 44,90 excl. VAT: € 37.73 / $ 43.01
*) Pmax 8 Ohm is the maximum power that this coil is able to deliver to the bass driver. The values are valid for free air convection and 20°C. For 4 Ohm speakers this value has to be halved.
