Since its inception in 1958 Faital has specialized in the design and manufacture of loudspeakers for a variety of industries. Starting in the early 60ís with 40% of the total Italian market demand for loudspeakers, Faital steadily grew to become today one of Europeís largest loudspeaker manufacturers. All the while Faital also focused on improving and increasing its industrialization and technological capabilities. Today Faital can count on 8 facilities worldwide.




Coaxial speaker

Faital Pro 5 HX 140 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 192/121 Hz (-3dB/-8dB)

recommended cabinet 2:
4,1 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 94/76 Hz (-3dB/-8dB).

Faital Pro 5 HX 140 A

order no. ah-fp5hx140a

EUR 185,00 excl. VAT: € 155.46 / $ 166.34

13 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 100-18000 Hz
  • resonance frequency fs = 100 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (1W; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 8 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 7,5 g
  • equivalent volume of compliance Vas = 3,4 l
  • total Q factor Qts = 0,41 (Qms=4,8, Qes=0,45)
  • voice coil diameter = 37 mm
  • maximum peak linear excursion vibration xlin = +/- 3,1 mm
  • mounting diameter d = 118 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 74 mm
  • mass m = 1,22 kg
PDF data sheet

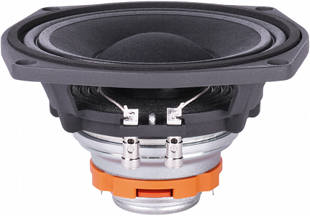

Faital Pro 6 HX 150 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 207/131 Hz (-3dB/-8dB)

recommended cabinet 2:
3,8 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 109/85 Hz (-3dB/-8dB).

Faital Pro 6 HX 150 A

order no. ah-FP6HX150A

EUR 244,00 excl. VAT: € 205.04 / $ 219.39

17 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 150/300 W
  • frequency range = 90-18000 Hz
  • resonance frequency fs = 88 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 12 N/A
  • voice coil inductance L = 0,64 mH
  • effective piston radiating area Sd = 139,2 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 6,3 l
  • total Q factor Qts = 0,34 (Qms=8,3, Qes=0,35)
  • voice coil diameter = 52 mm
  • maximum peak linear excursion vibration xlin = +/- 2,4 mm
  • mounting diameter d = 147 mm
  • overall diameter d = 186,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 1,3 kg
PDF data sheet

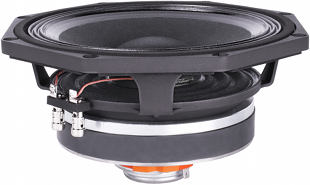

Faital Pro 8 HX 150 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 146/92 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 71/58 Hz (-3dB/-8dB).

Faital Pro 8 HX 150 A

order no. ah-FP8HX150A

EUR 220,00 excl. VAT: € 184.87 / $ 197.82

21 cm coax driver with paper cone.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 75-18000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 11,6 N/A
  • voice coil inductance L = 0,51 mH
  • effective piston radiating area Sd = 217,2 cm2
  • effective mechanical mass incl. air load mms = 22,3 g
  • equivalent volume of compliance Vas = 13 l
  • total Q factor Qts = 0,41 (Qms=9,5, Qes=0,43)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 2,3 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 223,75 mm
  • mounting depth (not countersunk) t = 111,7 mm
  • mass m = 3,6 kg
PDF data sheet

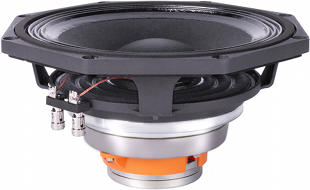

Faital Pro 8 HX 200 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 202/127 Hz (-3dB/-8dB)

recommended cabinet 2:
5,3 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 112/86 Hz (-3dB/-8dB).

Faital Pro 8 HX 200 A

order no. ah-FP8HX200A

EUR 354,00 excl. VAT: € 297.48 / $ 318.30

21 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 75-20000 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 13,8 N/A
  • voice coil inductance L = 0,51 mH
  • effective piston radiating area Sd = 217,2 cm2
  • effective mechanical mass incl. air load mms = 22 g
  • equivalent volume of compliance Vas = 13,1 l
  • total Q factor Qts = 0,3 (Qms=10,5, Qes=0,31)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 2,3 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 223,75 mm
  • mounting depth (not countersunk) t = 110,7 mm
  • mass m = 2,7 kg
PDF data sheet

Faital Pro 8 HX 230 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 186/117 Hz (-3dB/-8dB)

recommended cabinet 2:
6 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 103/79 Hz (-3dB/-8dB).

Faital Pro 8 HX 230 A

order no. ah-fp8hx230a

EUR 312,00 excl. VAT: € 262.18 / $ 280.54

20 cm coax driver with paper cone.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 70-20000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (1W; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 15 N/A
  • voice coil inductance L = 0,59 mH
  • effective piston radiating area Sd = 223 cm2
  • effective mechanical mass incl. air load mms = 24,4 g
  • equivalent volume of compliance Vas = 14,7 l
  • total Q factor Qts = 0,29 (Qms=6, Qes=0,31)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 126,5 mm
  • mass m = 4,7 kg
PDF data sheet

Faital Pro 8 HX 240 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 186/117 Hz (-3dB/-8dB)

recommended cabinet 2:
5,2 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 103/79 Hz (-3dB/-8dB).

Faital Pro 8 HX 240 A

order no. ah-fp8hx240a

EUR 370,00 excl. VAT: € 310.92 / $ 332.69

20 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 70-20000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (1W; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 13,8 N/A
  • voice coil inductance L = 0,49 mH
  • effective piston radiating area Sd = 223 cm2
  • effective mechanical mass incl. air load mms = 27,7 g
  • equivalent volume of compliance Vas = 12,9 l
  • total Q factor Qts = 0,3 (Qms=8,1, Qes=0,31)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 125,5 mm
  • mass m = 3,9 kg
PDF data sheet

Faital Pro 10 HX 230 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,4 L volume
from 131/82 Hz (-3dB/-8dB)

recommended cabinet 2:
31 L volume bass reflex cabinet
with HP100 reflex tube, 9 cm long.
from 65/52 Hz (-3dB/-8dB).

Faital Pro 10 HX 230 A

order no. ah-fp10hx230a

EUR 362,00 excl. VAT: € 304.20 / $ 325.50

25 cm coax driver with paper cone.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 65-20000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (1W; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 13,1 N/A
  • voice coil inductance L = 0,54 mH
  • effective piston radiating area Sd = 347 cm2
  • effective mechanical mass incl. air load mms = 33 g
  • equivalent volume of compliance Vas = 30,5 l
  • total Q factor Qts = 0,39 (Qms=5,8, Qes=0,42)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,7 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 261 mm
  • mounting depth (not countersunk) t = 136,5 mm
  • mass m = 5 kg
PDF data sheet

Faital Pro 10 HX 240 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 191/121 Hz (-3dB/-8dB)

recommended cabinet 2:
9,2 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 110/84 Hz (-3dB/-8dB).

Faital Pro 10 HX 240 A

order no. ah-fp10hx240a

EUR 415,00 excl. VAT: € 348.74 / $ 373.15

25 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 65-20000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (1W; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 15,5 N/A
  • voice coil inductance L = 0,45 mH
  • effective piston radiating area Sd = 347 cm2
  • effective mechanical mass incl. air load mms = 31,6 g
  • equivalent volume of compliance Vas = 31,8 l
  • total Q factor Qts = 0,28 (Qms=3,3, Qes=0,3)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,7 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 261 mm
  • mounting depth (not countersunk) t = 137 mm
  • mass m = 4,1 kg
PDF data sheet

Faital Pro 12 HX 230 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
95 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 49/40 Hz (-3dB/-8dB).

Faital Pro 12 HX 230 A

order no. ah-fp12hx230a

EUR 385,00 excl. VAT: € 323.53 / $ 346.18

30 cm coax driver with paper cone.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (1W; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 14,1 N/A
  • voice coil inductance L = 0,62 mH
  • effective piston radiating area Sd = 539 cm2
  • effective mechanical mass incl. air load mms = 50,2 g
  • equivalent volume of compliance Vas = 67,7 l
  • total Q factor Qts = 0,43 (Qms=7,4, Qes=0,46)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,7 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 316 mm
  • mounting depth (not countersunk) t = 162 mm
  • mass m = 5,2 kg
PDF data sheet

Faital Pro 12 HX 230 B
open a bigger photo

recommended cabinet 1:
closed cabinet with 59 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
236 L volume bass reflex cabinet
with 4x HP100 reflex tube, 9 cm long.
from 36/31 Hz (-3dB/-8dB).

Faital Pro 12 HX 230 B

order no. ah-fp12hx230b

EUR 385,00 excl. VAT: € 323.53 / $ 346.18

30 cm coax driver with paper cone.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (1W; 1m)
  • DC resistance Re = 11,5 Ohm
  • force factor BL = 17,6 N/A
  • voice coil inductance L = 0,93 mH
  • effective piston radiating area Sd = 539 cm2
  • effective mechanical mass incl. air load mms = 45,3 g
  • equivalent volume of compliance Vas = 72,3 l
  • total Q factor Qts = 0,56 (Qms=10,1, Qes=0,59)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,7 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 316 mm
  • mounting depth (not countersunk) t = 162 mm
  • mass m = 5,2 kg
PDF data sheet

Faital Pro 12 HX 240 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,8 L volume
from 121/77 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 62/49 Hz (-3dB/-8dB).

Faital Pro 12 HX 240 A

order no. ah-fp12hx240a

EUR 444,00 excl. VAT: € 373.11 / $ 399.23

30 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 56 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (1W; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 16 N/A
  • voice coil inductance L = 0,45 mH
  • effective piston radiating area Sd = 539 cm2
  • effective mechanical mass incl. air load mms = 53,6 g
  • equivalent volume of compliance Vas = 61,1 l
  • total Q factor Qts = 0,37 (Qms=11,3, Qes=0,38)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,7 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 316 mm
  • mounting depth (not countersunk) t = 162 mm
  • mass m = 4,2 kg
PDF data sheet

Faital Pro 12 HX 500 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 13 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
46 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 61/48 Hz (-3dB/-8dB).

Faital Pro 12 HX 500 A

order no. ah-fp12hx500a

EUR 670,00 excl. VAT: € 563.03 / $ 602.44

30 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 17,4 N/A
  • voice coil inductance L = 0,57 mH
  • effective piston radiating area Sd = 540 cm2
  • effective mechanical mass incl. air load mms = 58,88 g
  • equivalent volume of compliance Vas = 57,8 l
  • total Q factor Qts = 0,37 (Qms=7,3, Qes=0,39)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 6,3 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 316 mm
  • mounting depth (not countersunk) t = 175 mm
  • mass m = 5,5 kg
PDF data sheet

Faital Pro 15 HX 500 A
open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 114/72 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 65/49 Hz (-3dB/-8dB).

Faital Pro 15 HX 500 A

order no. ah-fp15hx500a

EUR 693,00 excl. VAT: € 582.35 / $ 623.12

37 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (1W; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 22,2 N/A
  • voice coil inductance L = 0,84 mH
  • effective piston radiating area Sd = 864 cm2
  • effective mechanical mass incl. air load mms = 110 g
  • equivalent volume of compliance Vas = 150,1 l
  • total Q factor Qts = 0,28 (Qms=5,5, Qes=0,29)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 6,4 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 200 mm
  • mass m = 6,1 kg
PDF data sheet

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2020 Iris Strassacker; All rights reserved. - errors and omissions excepted
