AC 6-Pin XLR Connectors

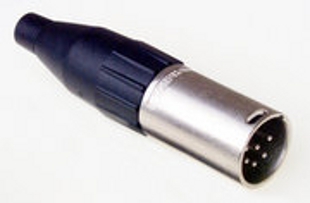

Amphenol AC6AM - XLR 6-pin male connector

6 contacts. The XLR male 4-7 pole connectors feature solid machined contacts and the unique Australian design and patented "Jaws" cable retention system which will handle up to 100lb (44kg) of strain. The connector can be quickly and easily assembled without screws - by hand or portable termination tool T2860.

price per unit   (Order No. ah-AC3M) EUR 3,50 excl. VAT: € 2.94 / $ 3.18

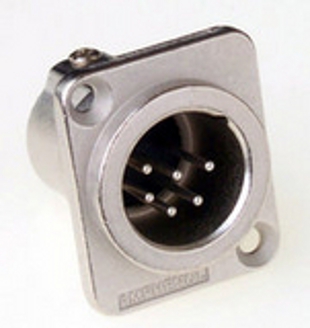

Amphenol AC6AMDZ - XLR 6-pin male universal socket

6 contacts. This receptacle style is available in 4 to 7 poles / contacts, and features a small universal mounting flange that can be either front or rear mounted. Improved grounding and more positive latch lock. Complies with IEC 268-12 and AES 14-1992 standards.

price per unit   (Order No. ah-AC3MDZ) EUR 3,90 excl. VAT: € 3.28 / $ 3.54
