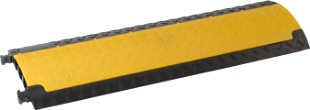

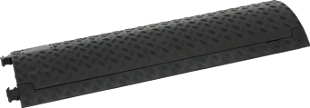

Defender Mini cable crossover

Small but sturdy. Light, professional and universally applicable, with the familiar black and yellow design. The new Defender Mini meets every expectation for professional cable protection, expanding the Defender series with a very light (only 5 kg!), compact cable crossover, capable of supporting vehicle traffic.

Featuring three cable ducts and a cable cross-section of 35 mm², with an overall height of 48 mm, although used primarily indoors, this crossover can readily support car traffic, due to the load-bearing capacity of more than 2 tons.The bottom of the Defender Mini has a non-slip surface, to ensure an optimal grip on the widest variety of surfaces. Like all of the Defender series crossovers, the Defender Mini is resistant to oils, acids, and petrol, and has a patented self-cleaning hinged closure.

• Length: 100 cm
• Width: 29 cm
• Height: 4.8 cm
• Material: PU (polyurethane)
• Shore A hardness: 88 ± 4
• Flammability class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)
• Operating temperature: -30°C to +60°C
• Load bearing: approx. 2 tons, for a surface area of 20 cm x 20 cm

Laser labelling on request (see template and requirements in download section).

PDF data sheet Technical drawing

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

Small but sturdy. Light, professional and universally applicable, with the familiar black and yellow design. The new Defender Mini meets every expectation for professional cable protection, expanding the Defender series with a very light (only 5 kg!), compact cable crossover, capable of supporting vehicle traffic.

Featuring three cable ducts and a cable cross-section of 35 mm², with an overall height of 48 mm, although used primarily indoors, this crossover can readily support car traffic, due to the load-bearing capacity of more than 2 tons.The bottom of the Defender Mini has a non-slip surface, to ensure an optimal grip on the widest variety of surfaces. Like all of the Defender series crossovers, the Defender Mini is resistant to oils, acids, and petrol, and has a patented self-cleaning hinged closure.

Technical Data

• Length: 100 cm
• Width: 29 cm
• Height: 4.8 cm
• Material: PU (polyurethane)
• Shore A hardness: 88 ± 4
• Flammability class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)
• Operating temperature: -30°C to +60°C
• Load bearing: approx. 2 tons, for a surface area of 20 cm x 20 cm

Laser labelling on request (see template and requirements in download section).

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

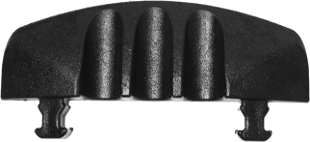

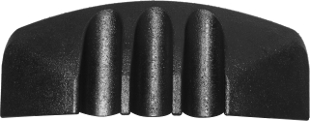

End ramp for cable outlet reduces the risk of tripping.

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

End ramp for cable outlet reduces the risk of tripping.
