Terminal plates for your loudspeakers

Terminal plate T105


Enlarge
The terminal plate is made of sturdy ABS plastic. For attaching the plate to the cabinet 3.5 mm PAN screws should be used.

Type T105
Order No. str-T105
Max. cable cross section 10 mm2
Binding post material brass, gold plated
Others Soldering lug
Cut-out diameter 76 mm
Total diameter 105 mm
Price per unit   EUR 3,80 excl. VAT: € 3.19 / $ 2.98



Terminal plate T82


Enlarge
The terminal plate is made of sturdy ABS plastic. For attaching the plate to the cabinet 3.5 mm PAN screws should be used.

Type T82 AU
Order No. str-t82
Max. cable cross section 10 mm2
Binding post material brass, gold plated
Others Lug 6.3x0.8
Cut-out diameter 59 mm
Total diameter 82.5 mm
Price per unit   EUR 3,25 excl. VAT: € 2.73 / $ 2.55



Terminal plates


Enlarge
This ABS terminal plate shows square shape. The terminal plate is made of sturdy ABS plastic. For attaching the plate to the cabinet 3.5 mm PAN screws should be used.

Type T80 AU
Order No. str-t80
Max. cable cross section 10 mm2
Binding post material Brass,
gold plated
Others Soldering lug
Cut-out diameter 68 mm
Total diameter 80 mm x 80 mm
Price per unit   EUR 3,25 excl. VAT: € 2.73 / $ 2.55



Terminal plates T93-79

This rectangular terminal plate needs little space and the cut-out with a compass saw is easier. It's available with binding posts with metal screws.

Type T93/79 MS Au
Order No. I-7128
Max. cable cross section 10 mm2
Binding post material Brass,
gold plated
Others Lug 6.3x0.8
cut-out (B x H) 73 x 53 mm
Overall size (B x H) 93 x 79 mm
Price per unit   EUR 4,15 excl. VAT: € 3.49 / $ 3.26

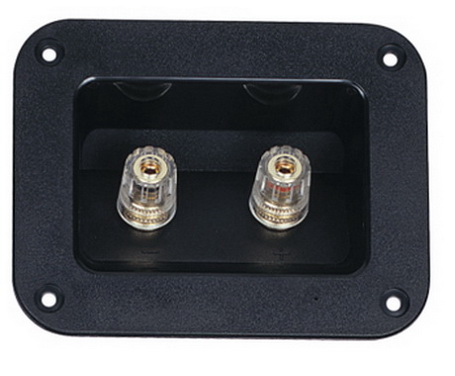

Terminal platesT124-96p


Enlarge
This rectangular terminal plate is of high quality, the cut-out with a compass saw is easy to be done. It's available with insolated binding posts made of brass.

Type
Order No. str-t124-96p
Max. cable cross section 16 mm2
Binding post material brass, gold plated
Others Lug 6.3x0.8
Cut-out square 89 x 66 mm mm
Total size 124 x 96 mm mm
Price per unit   EUR 4,15 excl. VAT: € 3.49 / $ 3.26



Terminal platesT80-80p


Enlarge
This rectangular terminal plate is delivered with insolated binding posts.

Type
Order No. str-t80-80p
Max. cable cross section 12 mm2
Binding post material plastic
Others Lug 5.3x0.5
Cut-out square 68 x 68 mm mm
Total size 80 x 80 mm mm
Price per unit   EUR 4,15 excl. VAT: € 3.49 / $ 3.26



Terminal platesT80-80p


Enlarge
This rectangular terminal plate is delivered with insolated binding posts.

Type
Order No. str-t93-79p
Max. cable cross section 12 mm2
Binding post material plastic
Others Lug 5.3x0.5
Cut-out square 74 x 54 mm mm
Total size 93 x 79 mm mm
Price per unit   EUR 4,15 excl. VAT: € 3.49 / $ 3.26



Biwiring Terminal plates

Biwiring Terminal plate T122/96


Enlarge
This terminal plate with four binding posts is suitable for bi-wiring (tweeter and woofer are connected to the amplifier separately). The plate is made of sturdy ABS. Suitable for mounting are 3.5 mm PAN screws.

This terminal plate with four binding posts is suitable for bi-wiring (tweeter and woofer are connected to the amplifier separately). The plate is made of sturdy ABS. It's available with binding posts either with metal screw (pictured) or plastic covered crew. Suitable for mounting are 3.9 mm tallow-drop screws.

Type T122/96 MS Au T122/96 ABS Ni
Order No. str-t122 I-7131
Max. cable cross section 10 mm2 10 mm2
Binding post material Brass,
gold plated
Plastic
Others Lug 6.3x0.8 Soldering lug
cut-out
(height x width)
96 x 74 mm 96 x 74 mm
Overall size
(height x width)
122 x 96 mm 122 x 96 mm
Price per unit   EUR 7,60 excl. VAT: € 6.39 / $ 5.97   EUR 6,90 excl. VAT: € 5.80 / $ 5.42



Terminal plates T122/96

This terminal plate with four binding posts is suitable for bi-wiring (tweeter and woofer are connected to the amplifier separately). The plate is made of sturdy ABS. It's available with binding posts either with metal screw (pictured) or plastic covered crew. Suitable for mounting are 3.9 mm tallow-drop screws.

Type T122/96 MS Au T122/96 ABS Ni
Order No. str-t122 I-7131
Max. cable cross section 10 mm2 10 mm2
Binding post material Brass,
gold plated
Plastic
Others Lug 6.3x0.8 Soldering lug
cut-out
(height x width)
96 x 74 mm 96 x 74 mm
Overall size
(height x width)
122 x 96 mm 122 x 96 mm
Price per unit   EUR 7,60 excl. VAT: € 6.39 / $ 5.97   EUR 6,90 excl. VAT: € 5.80 / $ 5.42

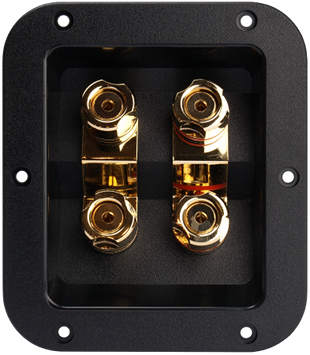

Terminal plates T150/130

Enlarge


Enlarge

Type T150/130 AU
Order No. str-t150-130
Max. cable cross section 50 mm2
Binding post material Brass,
gold plated
Others Lug 6.3x0.8
cut-out (B x H) 116 x 98 mm
Overall size (B x H) 150 x 130 mm
Price per unit   EUR 41,00 excl. VAT: € 34.45 / $ 32.20



Spring-loaded push connectors

Terminal plates T56


Enlarge
These two ABS terminal plates are equipped with spring-loaded push connectors. The upper model T56 D is circular and snaps into a cut-out of 48 mm diameter. The lower one is square and can be attached with 3.5 mm countersunk screws.


Enlarge
Type T56D T56/56DB
Order No. str-t56 str-t56db
Max. cable cross section 6 mm2 6 mm2
Terminal shape Circular Square with
mounting holes
Others Soldering lug Soldering lug
cut-out 48 mm, circular 49 mm, circular
Overall size
(height x width)
56 mm, circular 56 x 56 mm
Price per unit   EUR 0,60 excl. VAT: € 0.50 / $ 0.47   EUR 0,65 excl. VAT: € 0.55 / $ 0.51
Price per 10 unit   EUR 3,50 excl. VAT: € 2.94 / $ 2.75   EUR 5,20 excl. VAT: € 4.37 / $ 4.08



Terminal plates T138/99


Enlarge
Subwoofer or multi-wiring (drivers are connected to the amp separately) terminal plate, made of platic.

Type TK138-99
Order No. str-tk138-99
Max. cable cross section 6 mm2
Binding post material Plastic
Others Soldering lug
cut-out
(height x width)
77 x 118 mm
Overall size
(height x width)
99 x 138.5 mm
Price per unit   EUR 3,35 excl. VAT: € 2.82 / $ 2.63



Terminals with switch for your speakers

Mivoc terminals for your speakers

Type AT 105 S AT 140 D
Order No. rm-at105s rm-at140d
Description terminal with two binding posts terminal with 4 binding posts
Level Control with switch for level adjustment
Overall size 105 x 105 x 50 mm 140 x 105 x 60 mm
cut-out (HxWxD) 70 x 75 x 40 mm 105 x 75 x 50 mm
max. cable cross section 4 mm2 4 mm2
Price per unit   EUR 4,50 excl. VAT: € 3.78 / $ 3.53   EUR 7,00 excl. VAT: € 5.88 / $ 5.50
