Technical data
- impedance: 4 Ohm
- sensivity (2,83V/1m): 88 dB
- size (HxWxD): 1300 x 250 x 306 mm
- frequency range (-8dB): 29 - 20000 Hz
- crossover frequency(s): 150, 3000 Hz
- speaker type: bass reflex
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enlarge |
|
|
|
|
|
|
Enlarge |
|
|
|
|
|
|
|
|

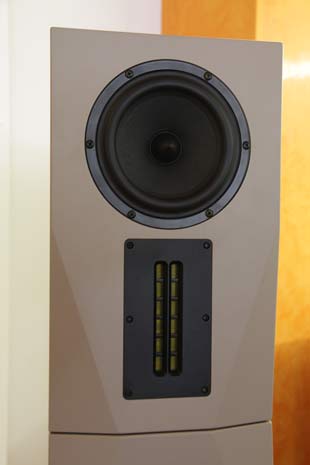

Our kit Volta Top consists of
- Audiopur Magnetostat MAG17M
- Audaphon woofer MB 18-8
- Bass reflex tube HP70, 68x160 mm, black
- PE sealing tape, 5x2 mm
- Damping Sonofil 100 x 35 cm for 20 litres
- Bi-wiring Terminal T122 Au with brass, gold plated
- 1,5 m Speaker cable 2x1.5 mm2, transparent
- Pan screws 3.5x17 black, cross recess, 12 pieces
- Pan screws 4x20 black, cross recess, 8 pieces
- Plan for DIY kit
|
the crossover components,
to be mounted on a small wooden board:
- Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
- Audaphon MKP CAP Superior 5.6 μF / 400 Vdc
- Audaphon MKT CAP 1.0 μF / 160 Vdc
- Audaphon MKT CAP 6.8 μF / 160 Vdc
- Audaphon air core coil L7, 0.27 mH/0.44 Ohm
- Mundorf air core coil L71, 0.82 mH/0.89 Ohm
- Jantzen H core coil 1.8 mH / 0.36 Ohm / 0.8 mm
- Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
- Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
|

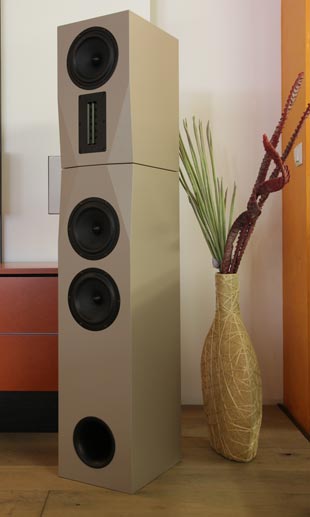

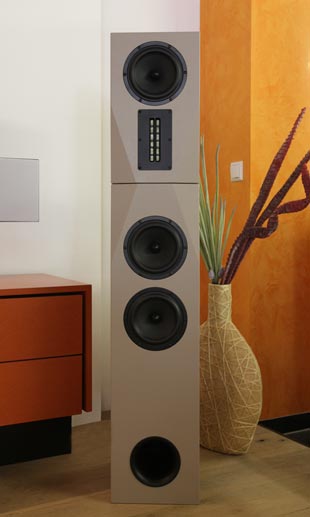

Volta floorstanding consists of the top part and the bass part. You will need to order both parts to complete the floorstanding.
Kit Volta Top without cabinet, price per speaker
- not available
|

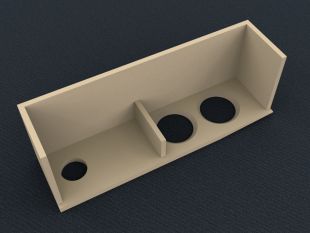

Our kit Volta Bass consists of
- 2x Audaphon woofer MB 18-8
- 2x Bass reflex tube HP100, 100x200 mm, black
- PE sealing tape, 5x2 mm
- 1,5x Damping Sonofil 100 x 35 cm for 20 litres
- Bi-wiring Terminal T122 Au with brass, gold plated
- 2,5 m Speaker cable 2x1.5 mm2, transparent
- Pan screws 3.5x17 black, cross recess, 4 pieces
- Pan screws 4x20 black, cross recess, 12 pieces
- Plan for DIY kit
|
the crossover components,
to be mounted on a small wooden board:
- 2x electrolytic capacitor, etched, 220 μF/63 Vdc
- electrolytic capacitor, unetched, 100uF / 50 Vdc
- Jantzen H core coil 22 mH / 1.4 Ohm / 0.8 mm
- Jantzen H core coil 8.2 mH / 0.8 Ohm / 0.8 mm
- Jantzen H core coil 10 mH / 0.39 Ohm / 1.4 mm
- Ceramic resistor 4.7 Ohm/20 Watt
|
Kit Volta Bass without cabinet, price per speaker
- not available
|
Our kit Volta Top with high end crossover consists of
|
Enlarge |
- Audiopur Magnetostat MAG17M
- Audaphon woofer MB 18-8
- Bass reflex tube HP70, 68x160 mm, black
- PE sealing tape, 5x2 mm
- Damping Sonofil 100 x 35 cm for 20 litres
- Bi-wiring Terminal T122 Au with brass, gold plated
- 1,5 m Speaker cable 2x1.5 mm2, transparent
- Pan screws 3.5x17 black, cross recess, 12 pieces
- Pan screws 4x20 black, cross recess, 8 pieces
- Plan for DIY kit
|
the crossover components,
to be mounted on a small wooden board:
- ClarityCap ESA capacitor 3.3 μF / 250 Vdc
- ClarityCap ESA capacitor 5.6 μF / 250 Vdc
- Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
- Audaphon MKP CAP Superior 6.8 μF / 400 Vdc
- Audaphon air core coil L7, 0.27 mH/0.44 Ohm
- Mundorf air core coil L71, 0.82 mH/0.89 Ohm
- Mundorf air core coil L140, 1.8 mH/0.43 Ohm
- Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
- Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
|
Kit Volta Top with high end crossover, without cabinet, price per speaker
- not available
|
Our kit Volta Bass with high end crossover consists of
- 2x Audaphon MB 18-8
- 2x electrolytic capacitor, etched, 220 μF/63 Vdc
- 2x Bass reflex tube HP100, 100x200 mm, black
- 0,5x PE sealing tape, 5x2 mm, 7.5 m
- 1,5x Damping Sonofil 100 x 35 cm for 20 litres
- Bi-wiring Terminal T122 Au with brass, gold plated
- 2,5x Speaker cable 2x1.5 mm2, transparent
- 0,5x Pan screws 3.5x17 black, cross recess, 8 pieces
- 1,5x Pan screws 4x20 black, cross recess, 8 pieces
- Plan for DIY kit
|
the crossover components,
to be mounted on a small wooden board:
- ClarityCap PWA capacitor 100uF / 160 Vdc
- Jantzen H core coil 22 mH / 1.4 Ohm / 0.8 mm
- Jantzen H core coil 8.2 mH / 0.8 Ohm / 0.8 mm
- Jantzen H core coil 10 mH / 0.39 Ohm / 1.4 mm
- Ceramic resistor 4.7 Ohm/20 Watt
|
Kit Volta Bass with high end crossover, without cabinet, price per speaker
- not available
|
|
