Elias X1 W152   wall-mounted speaker as in K+T 6/2019

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 750 x 250 x 222 mm
  • frequency range (-8dB): 33 - 30000 Hz
  • crossover frequency(s): 1400 Hz
  • speaker type: bass reflex

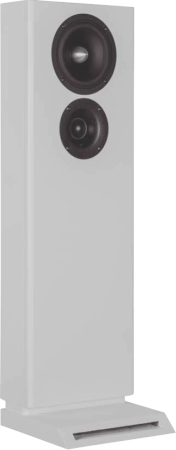

Elias X1 W152 is a two way compact speaker for use directly on the wall. For freestand use we recomment Elias X1 R152.

Elias X1 W152 is a bass-reflex cabinet loudspeaker with drivers of Wavecor .

The kit is delivered with the following drivers:
- a Wavecor TW030WA12 tweeter
- a Wavecor WF152CU14 woofer

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of:
- a 2nd order high-pass filter (12 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 1,5% above 300 Hz and doesn't exceed 1,5% at 95 dB at 1 m between 300 and 15000 Hz.

  • Wavecor silk dome tweeter TW030WA12, 8 Ohm
  • WF152CU14, Wavecor Mid/Woofer, 8 Ohm, paper cone, BD, phase plug
  • 0,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • Female banana jacks, red and black
  • 2m Speaker cable 2x1.5 mm2 black/red
  • 0,5x Pan screws 3.5x17 black, torx, 8 pieces
  • 0,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 3.9 μF / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF / 400 Vdc
  • Audaphon MKT CAP 22 μF / 160 Vdc
  • Mundorf air core coil L140, 0.47 mH/0.19 Ohm
  • 0.7 mm air core coil, 1.0 mH/1.02 Ohm
  • Mundorf H core coil H100, 2.7 mH/0.24 0hm
  • Metal-oxide resistor, 10W 3.3 Ohm (orange-orange-gold)

Kit without cabinet, price per speaker   EUR 403,00 excl. VAT: € 338.66 / $ 365.75

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Wavecor TW030WA12 are of type polypropylen (MKP) Clarity-Cap ESA 250 V.

Kit with high-end-crossover without cabinet, price per speaker   EUR 436,00 excl. VAT: € 366.39 / $ 395.70

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 12,50 excl. VAT: € 10.50 / $ 11.34

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.27
We recommend one board per kit (2 boards per speaker pair)

Measurements

measurmentsMeasurements on this speaker
