Measurements AllAl

Measurements AllAl

Here you can find the measurements for the kit AllAl.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

Frequency response

Measurements AllAl, Frequency response

Frequency response of the individual paths (for each driver)

Measurements AllAl, Frequency response of the individual paths (for each driver)

Blue = Sum of tweeter and woofer measured on axis
Green = high frequency branch
Red = low frequency branch

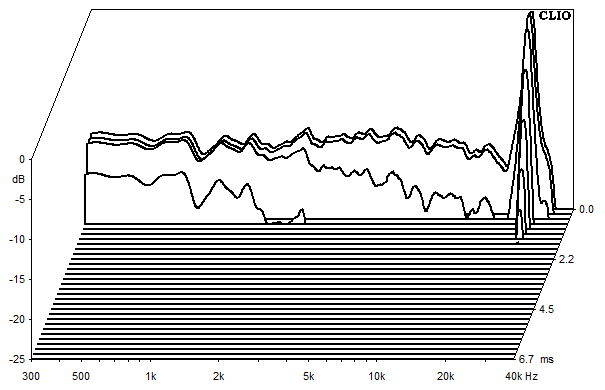

Waterfall spectrum

Measurements AllAl, Waterfall spectrum

Distortion over frequency at 85 dB sound pressure level

Measurements AllAl, Distortion over frequency at 85 dB sound pressure level

Blue = k2
Red = k3
Green = k5

Distortion over frequency at 95 dB sound pressure level

Measurements AllAl, Distortion over frequency at 95 dB sound pressure level

Blue = k2
Red = k3
Green = k5

Impedance frequency response

Measurements AllAl, Impedance frequency response

Blue = without impedance correction
Red = with impedance correction

Frequency response of the tweeter

Measurements AllAl, Frequency response of the tweeter

Blue = with crossover
Orange = without crossover

Frequency response of the tweeter with trap circuit

Measurements AllAl, Frequency response of the tweeter with trap circuit

Blue = with trap circuit
Orange = without trap circuit

Frequency response of the woofer

Measurements AllAl, Frequency response of the woofer

Blue = with crossover
Orange = without crossover
