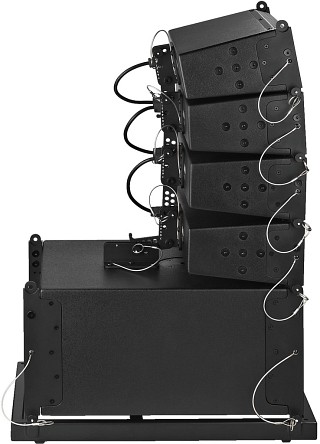

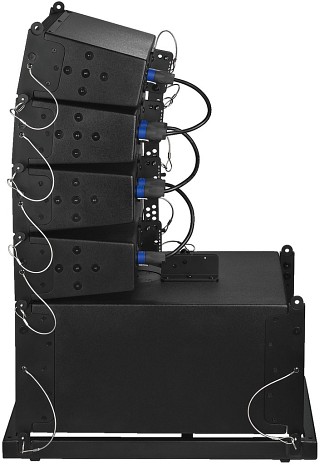

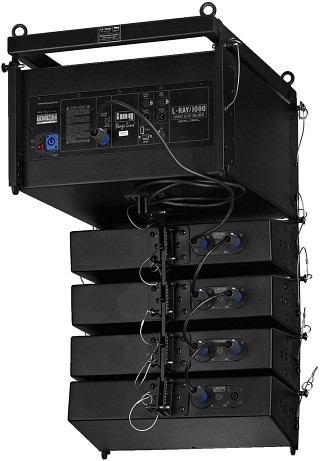

Professional PA speaker array (controlled by DSP software), active, L-RAY/1000

Professional State-of-the-Art PA Technology at a Compact Size: The active speaker array L-RAY/1000 from IMG Stage Line impresses by a perfect sound with professional adjustment facilities, the advantages of the radiation typical of array, a high-quality workmanship and an amazing level stability.

Professional PA speaker array (controlled by DSP software), active, 1,000 WMAX, 700 WRMS (350 W+350 W)

Compact array of high power capability with 4 mid-high range speaker units and a dual bass module, each section with its own 350 WRMS power amplifier and controlling software (the configuration of the system is supported by a PC, but it operates as a stand-alone unit!). Supplied with extensive and variable equipment for suspended mounting systems (Flyware). The mid-high range systems are each equipped with 2 x 10 cm (4") high-performance speakers and a magnetostatic speaker for a perfect reproduction rich in detail. The dynamic characteristics are absolutely convincing, at the same time the tonality at the basic setting is very pleasant. Despite its compact size, the bass module with two 20 cm (8") bass speakers provides an amazingly deep bass reproduction and a high level stability which is only possible by using special bass speakers of very high power capability and the comprehensive DSP optimisation. The software allows the following adjustments (min. system requirement is a Windows PC only, WIN98 or higher, with CD drive and interface):
  • Parametric equalizer (6 bands)
  • Filters (high-pass or low-pass up to 36 dB/oct. with various characteristics)
  • Level
  • Compression and limiting
  • Delay


Up to 10 L-RAY systems can be addressed via one RS-485 data bus. With the optional USB/RS-485 converter DA-70157, it is possible to connect a PC or laptop with USB interface to the serial RS-485 interface.

On delivery, the software of the system is matched to a perfect base linearity and can be used immediately! Otherwise, the software adjustments are extremely easy to do and sound engineers can even operate it intuitively.

The system is supplied with a robust mounting frame which is both suitable for suspended installation and for floor and stage applications. The array elements can be curved in 1° steps. The individual components are locked via quick-release pins. The mounting frame also allows for suspended installation of the array elements only, without the subwoofer.

Furthermore, the array elements feature a connecting plate for a bracket for mounting it onto a stand. With the accessories LR-1000U and KM-21367, which are both available at option, the system also allows for a ground-stacked configuration. For this purpose, the subwoofer cabinet features a recessed M20 mounting plate.

The speaker cables with NEUTRIK SPEAKON connectors are in the scope of delivery and allow to connect the parts with each other and with the subwoofer.

Connection to the mains is done via a POWERCON jack (e.g. with mains cable AAC-115P).

The robust wooden cabinets feature grilles and a durable structured coating.

The L-RAY/1000 systems are a very high-quality solution for every PA application where both perfect tonality and perfect radiation across the room are required. The advantages of the system particularly take effect with fixed installations in clubs and discotheques as well as mobile stage applications of medium size. For larger PA applications, the use of several L-RAY in a cluster is recommended.

For installation by experts only! Please pay attention to the use of appropriate installation material, as otherwise persons and units will be put at risk.

The unit is equipped with a POWERCON jack. Supplied without mains cable (AAC-115P is available at option).

L-RAY/1000 now with quick-release pins!

Xound 01/2009

"The L-RAY/1000 gives a convincing performance. The system provides a detailed reproduction of absolutely low distortion up to the highest frequencies, even at high volume levels. A real pleasure with perfect speech intelligibility. Excellent price-performance ratio!"

SOUNDCHECK 05/2008

"Remarkable features for this price class. The L-RAY/1000 provides a clear and precise sound with a little help from the system controller and impresses by remarkable level reserves."

tools4music 03/2008

"Beside an unobtrusive appearance, the L-RAY/1000 also provides a pleasant sound with a good speech intelligibility and convincing operating ranges. It is quite amazing what this little system is capable of."

Dirk Wedell, PROSOUND 04/2008

"The L-RAY from IMG Stage Line is a useful tool which is available at a favourable price and works exactly as you need it."
Specifications:
  • System: compact line array
  • Bass speaker: 2 x 20 cm (8")
  • Midrange speaker: 8 x 10 cm (4")
  • Tweeter: 4 x magnetostatic speaker
  • Power rating:
  • Max. power: 1,000 WMAX
  • Power rating: 700 WRMS (350 W + 350 W)
  • General Information:
  • Frequency range: 50-25,000 Hz
  • SPL (1 W/1 m): 98 dB
  • Max. rated SPL: 121 dB
  • Radiation angle/Beam angle: hor. 120°, vert. 30°-90° var.
  • Connections:
  • Inputs:
  • Line: XLR jack, 1-10 V/30 kΩ
  • Speaker (at the top): NEUTRIK SPEAKON
  • Power supply: POWERCON
  • Outputs:
  • Line: XLR par. out
  • Speaker (at the bass speaker): NEUTRIK SPEAKON
  • Speaker (at the top): NEUTRIK SPEAKON par. out
  • Admiss. ambient temp.: 0-40 °C
  • Amplifier section:
  • S/N ratio: 80 dB
  • THD:<0.1 %
  • Power supply: 230 V /50 Hz/1,400 VA
  • Dimensions array: 495x850x610 mm
  • Weight: 51 kg
  • Special feature: interface for DSP programming: USB, RS-232, RS-485 IN & OUT, supplied with software which is both extremely easy to use and very efficient

Price per unit   (Order No. mo-252090) EUR 2112,50 excl. VAT: € 1775.21 / $ 1917.23

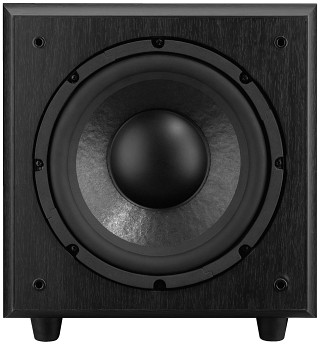

Active subwoofer system, 200 WMAX, 120 WRMS, SOUND-100SUB

With the 2-way active systems and the subwoofers of the SOUND series, efficient speakers with a powerful sound are available in different sizes and with different features. They are all integrated into high-quality bass-reflex MDF cabinets and feature speakers with magnetic shielding. The speaker systems are ideally suited as active hi-fi speaker systems, high-end PC speakers and for small PA applications requiring a powerful sound, e.g. media presentations.

Active subwoofer system, 200 WMAX, 120 WRMS

  • Active subwoofer provides a pulsed sound and a powerful bass reproduction. For adding to the active SOUND speaker systems, but also to any other compact speaker for hi-fi or home cinema applications and home recordings
  • Beside the variable input sensitivity, a phase switch and an automatic switch-on system which can additionally be activated, the amplifier features an adjustable crossover frequency (50-150 Hz)
  • High-quality bass-reflex MDF cabinet (black wood veneer look)
  • 25 cm (10") bass speaker
  • Volume control for the subwoofer
  • Inputs via 1 x RCA L/R, RCA LFE or screw terminals for high-level L/R
  • Additional outputs for mid-high range speakers, thus well-suited for the connection to already existing speaker cables
Specifications:
  • Frequency range: 35-100 Hz
  • Amplifier power: 200 WMAX, 120 WRMS
  • Inputs: 150 mV/24 kΩ (RCA L/R) 55 mV/16 kΩ (RCA mono) 2.3 V/440 Ω (high IN)
  • SPL (1 W/1 m): 88 dB
  • Max. rated SPL: 108 dB
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V /50 Hz/240 VA
  • Dimensions (WxHxD): 330x360x360 mm
  • Weight: 13 kg
  • Connections: 1 x RCA (L/R), unbal., IN 1 x RCA (mono), unbal., IN 1 x screw terminal (stereo), high-level IN 1 x screw terminal (stereo), high-level OUT
  • Other features: -

Price per unit   (Order No. mo-250730) EUR 401,84 excl. VAT: € 337.68 / $ 364.70

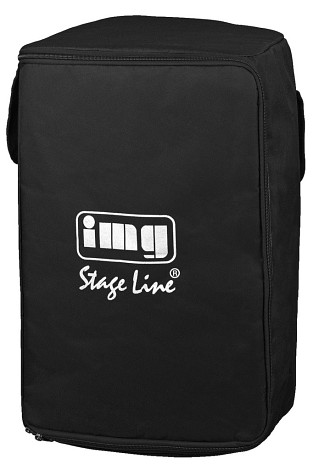

Protective bag for speaker systems BAG-08M

Protective bag for speaker systems

BAG-15M: for the PA speaker systems MEGA-115MK2, MEGA-DSP15 and MOVE-15

BAG-12M: for the PA speaker systems MEGA-112MK2, MEGA-DSP12 and MOVE-12

BAG-10M: for the PA speaker systems MEGA-110MK2, MEGA-DSP10 and MOVE-10

BAG-08M: for the PA speaker systems MEGA-DSP08 and MOVE-08

  • Outer material of solid, black artificial textile with soft inner lining
  • Openings for stand and handle, cover straps to be closed with hook and loop fastener or zip fastener



Price per unit   (Order No. mo-255710) EUR 76,70 excl. VAT: € 64.45 / $ 69.61

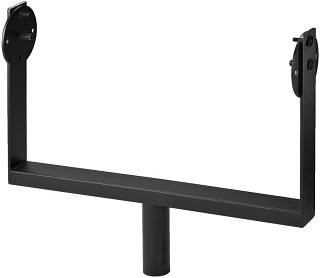

U-bracket for LR-1000SAT, LR-1000U

The components of the L-RAY/1000 are now available individually. They allow for a ground-stacked configuration or suspended installation of the mid-high range units directly at the mounting frame without subwoofer cabinet.

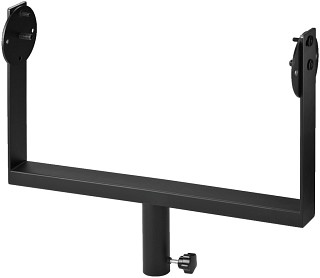

U-bracket for LR-1000SAT

  • This U-bracket allows for an upright installation (ground-stacked configuration) of the L-RAY/1000 system
  • The mid-high range unit can be tilted by +/-15°
  • Supplied with mounting and adjusting elements
  • Ground-stacked configuration with LR-1000SUB, LR-1000SAT and LR-1000F (recommended spacer tube: KM-21367)
  • To be mounted onto a stand



Price per unit   (Order No. mo-254730) EUR 124,00 excl. VAT: € 104.20 / $ 112.54
