Tie clip microphones

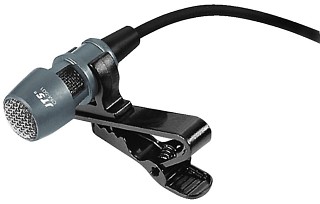

Electret lavalier microphone CM-501

Enlarge Enlarge Electret lavalier microphone

This microphone is designed for presentations and discussions. It ensures good audibility, allows for a secure fit due to the supplied tie clip and is quickly attached. The cartridge design of cardioid characteristic allows to pick up a precise voice of high quality over a wide dynamic range. Supplied with windshield.

Specifications:

  • System: electret/cardioid
  • Frequency range: 100-15,000 Hz
  • Impedance: 2.2 kΩ
  • Sensitivity: 3.2 mV/Pa/1 kHz
  • Max. SPL: 130 dB
  • Power supply: pocket transmitter IN/PT/UF series or PS-500
  • Connections: cable with 4-pole mini XLR
  • Weight: 20 g

Price per unit   (Order No mo-234690) EUR 30,50 excl. VAT: € 25.63 / $ 28.96

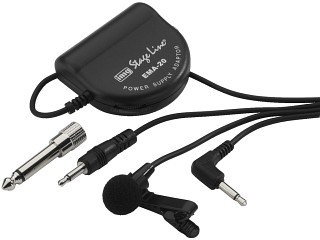

Electret tie clip microphone ECM-2500

Enlarge Electret tie clip microphone, with power supply adapter.
  • Microphone cartridge of omnidirectional characteristic
  • Removable clip
  • Supplied with phantom power supply adapter EMA-20
  • Connection via 3.5 mm plug
  • Supplied without 1.5 V battery AAA size
Matching replacement microphone windshield WS-10 is available at option.

Specifications:

  • Frequency range: 20-16,000 Hz
  • Sensitivity: 6 mV/Pa/1 kHz
  • Impedance: -
  • Max. SPL: 120 dB
  • S/N ratio: 50 dB
  • Power supply: via suppl. EMA-20, 1.5 V batt. AAA size (not suppl.)
  • Dimensions mic.: Ø 8.5 mm x 20 mm

Price per unit   (Order No mo-232670) EUR 24,50 excl. VAT: € 20.59 / $ 23.26



Replacement electret tie clip microphone ECM-821LT

Enlarge Replacement electret tie clip microphone
  • Microphone cartridge of cardioid characteristic
  • Removable clip
  • 0.8 m connection cable with 3.5 mm plug, with latching device
  • Operation via a pocket transmitter of the series TXS-820SX, TXS-822SX, TXS-820LT or TXS-822LT
  • Microphone windshield

Specifications:

  • System: electret/cardioid
  • Frequency range: 50-16,000 Hz
  • Impedance: 680 Ω
  • Sensitivity: 5.6 mV/Pa/1 kHz
  • Max. SPL: 110 dB
  • Power supply: 1.5-3 V
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 12 mm x 18 mm
  • Weight: 22 g
  • Connection: 3.5 mm plug

Price per unit   (Order No mo-235450) EUR 20,00 excl. VAT: € 16.81 / $ 18.99



Electret tie clip microphone ECM-2005

Enlarge Electret tie clip microphone, miniature version.
  • Microphone cartridge of omnidirectional characteristic
  • Removable clip
  • Battery compartment can be switched off, with belt clip
  • 5 m cable with 3.5 mm right-angle plug
  • Supplied without button cell battery LR-44
Matching replacement microphone windshield WS-10 is available at option.

Specifications:

  • Frequency range: 50-16,000 Hz
  • Sensitivity: 6 mV/Pa/1 kHz
  • Impedance: 600 Ω
  • Max. SPL: 120 dB
  • S/N ratio:>40 dB
  • Power supply: button cell 1.5 V Ø 11.6 mm x 5.4 mm
  • Dimensions mic.: Ø 10 mm x 17 mm

Price per unit   (Order No mo-231570) EUR 22,00 excl. VAT: € 18.49 / $ 20.89

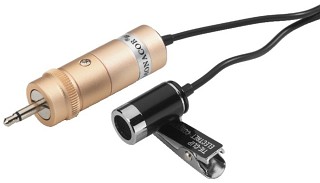

Electret tie clip microphone ECM-3003

Enlarge Electret tie clip microphone
  • Excellent sound quality
  • Microphone cartridge of omnidirectional characteristic
  • Strong clip
  • Power supply in the 3.5 mm plug
  • 4 m connection cable
  • Supplied without button cell battery LR-44
Matching replacement microphone windshield WS-20 is available at option.

Specifications:

  • Frequency range: 50-16,000 Hz
  • Sensitivity: 5.6 mV/Pa/1 kHz
  • Impedance: 1 kΩ
  • Max. SPL: 120 dB
  • S/N ratio:>40 dB
  • Power supply: button cell 1.5 V Ø 11.6 mm x 5.4 mm
  • Dimensions mic.: Ø 12 mm x 23 mm

Price per unit   (Order No mo-230340) EUR 23,00 excl. VAT: € 19.33 / $ 21.84

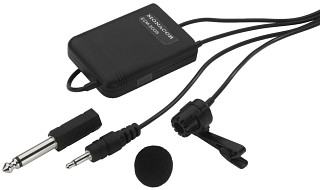

Electret tie clip microphone ECM-3005

Enlarge Electret tie clip microphone
  • Excellent sound quality
  • Microphone cartridge of omnidirectional charasteristic
  • Push-on microphone windshield
  • Strong, removable clip
  • Belt clip and switch
  • 4 m cable with 3.5 mm plug
  • Supplied without 1.5 V battery AAA size
Matching replacement microphone windshield WS-20 is available at option.

Specifications:

  • Frequency range: 50-16,000 Hz
  • Sensitivity: 6 mV/Pa/1 kHz
  • Impedance: 600 Ω
  • Max. SPL: 120 dB
  • S/N ratio:>40 dB
  • Power supply: 1.5 V batt. AAA size
  • Dimensions mic.: Ø 13 mm x 19 mm

Price per unit   (Order No mo-231580) EUR 21,00 excl. VAT: € 17.65 / $ 19.94



Electret lavalier microphone ECM-300L

Enlarge Electret lavalier microphone
  • Extra compact version
  • Phantom power via adapter EMA-300P, available at option
  • With 6 m connection cable and tie clip

Specifications:

  • System: electret/omnidir.
  • Frequency range: 50-18,000 Hz
  • Impedance: 400 Ω
  • Sensitivity: 4 mV/Pa/1 kHz
  • Max. SPL: 120 dB
  • Power supply: via power supply adapter
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 9 mm x 21 mm
  • Weight: 4 g
  • Connection: 3-pole mini XLR, unbal.

Price per unit   (Order No mo-232400) EUR 30,50 excl. VAT: € 25.63 / $ 28.96

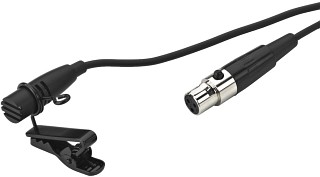

Electret tie clip microphone ECM-402L

Enlarge Electret tie clip microphone, miniature version.
  • Microphone cartridge of cardioid characteristic
  • Removable clip and 1.2 m connection cable
  • 3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-300P) or a pocket transmitter TXS-...HSE

Specifications:

  • System: electret/cardioid
  • Frequency range: 70-15,000 Hz
  • Impedance: 1.5 kΩ
  • Sensitivity: 7 mV/Pa/1 kHz
  • Max. SPL: 120 dB
  • Power supply: via power supply adapter
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 7 mm x 22 mm
  • Weight: 4 g
  • Connection: 3-pole mini XLR

Price per unit   (Order No mo-233520) EUR 36,00 excl. VAT: € 30.25 / $ 34.18

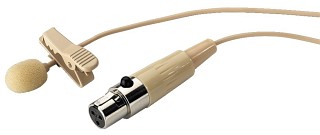

Electret tie clip microphone ECM-501L/SK

Enlarge Electret tie clip microphone
  • Unobtrusive fit due to beige miniature design
  • High-quality microphone cartridge of omnidirectional characteristic
  • Removable clip and 1.2 m connection cable
  • 3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-1, EMA-300P) or a pocket transmitter TXS-...HSE

Specifications:

  • System: electret/omnidir.
  • Frequency range: 20-20,000 Hz
  • Impedance: 1 kΩ
  • Sensitivity: 5.6 mV/Pa/1 kHz
  • Max. SPL: 110 dB
  • Power supply: 1.5-9 V DC current
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 5 mm x 10 mm
  • Weight: 5 g
  • Connection: 3-pole mini XLR

Price per unit   (Order No mo-233900) EUR 38,00 excl. VAT: € 31.93 / $ 36.08
