ViaBlue Spikes

Quattro Base 2.8

Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ Bases reduce vibrations from speakers and other devices. Every Quattro Base contains the following absorption system: two base boards for the absorption of waves, two bass dampers to reduce low frequency vibrations and spikes to separate the upper and lower base boards.

The multi-decoupling system of the two baseboards of the ViaBlue™ Quattro Absorbing System combined with additional soft pads on the surface of the base as well as at the bottom of adjustable feet lead to a reduction in vibrations and allow for a solid basis for an enhanced balance in sound and musical precision. In the end, vibrations are not transferred to furniture or flooring, but wave movements are reduced considerably enabling a clear and accurate playback of the music.

The sound quality of HiFi equipment is dependent on the supporting surface. The concept of ViaBlue™ QUATTRO Base with two baseboards (more volume and mass) is to provide a stable supporting surface able to absorb vibrations. ViaBlue™ Softpads on the surface of the base as well as at the bottom of adjustable feet provide two damping systems to regulate the bass. There are four 24-karat gold-plated spikes integrated in each of the two baseboards in order to provide a connection with maximal pressure. ViaBlue™ Bases QUATTRO 5.0 and QUATTRO 2.8 differ in size of surface area.

Technical specifications:

  • Surface: Viablue™ softpads
  • Height adjustment: 2.5 mm
  • Bass absorption: 2 damping systems
  • Maximum load: 200 KG
  • Number of items per Base: 43 pieces

Price per unit   (Order No vib-50420) - not available (_) Colour: black high polish, Dimensions (WxDxH): 280 X 280 X 86 mm, Weight: 5.9 KG

Price per unit   (Order No vib-50421) - not available (_) Colour: silver high polish, Dimensions (WxDxH): 280 X 280 X 86 mm, Weight: 5.9 KG

Price per unit   (Order No vib-50425) - not available (_) Colour: granite, Dimensions (WxDxH): 280 X 280 X 62 mm, Weight: 11.5 KG



Quattro Base 5.0

Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ Bases reduce vibrations from speakers and other devices. Every Quattro Base contains the following absorption system: two base boards for the absorption of waves, two bass dampers to reduce low frequency vibrations and spikes to separate the upper and lower base boards.

The multi-decoupling system of the two baseboards of the ViaBlue™ Quattro Absorbing System combined with additional soft pads on the surface of the base as well as at the bottom of adjustable feet lead to a reduction in vibrations and allow for a solid basis for an enhanced balance in sound and musical precision. In the end, vibrations are not transferred to furniture or flooring, but wave movements are reduced considerably enabling a clear and accurate playback of the music.

The sound quality of HiFi equipment is dependent on the supporting surface. The concept of ViaBlue™ QUATTRO Base with two baseboards (more volume and mass) is to provide a stable supporting surface able to absorb vibrations. ViaBlue™ Softpads on the surface of the base as well as at the bottom of adjustable feet provide two damping systems to regulate the bass. There are four 24-karat gold-plated spikes integrated in each of the two baseboards in order to provide a connection with maximal pressure. ViaBlue™ Bases QUATTRO 5.0 and QUATTRO 2.8 differ in size of surface area.

Technical specifications:

  • Surface: Viablue™ softpads
  • Height adjustment: 2.5 mm
  • Bass absorption: 2 damping systems
  • Maximum load: 200 KG
  • Number of items per Base: 43 pieces

Price per unit   (Order No vib-50440) - not available (_) Colour: black high polish, Dimensions (WxDxH): 500 X 400 X 86 mm, Weight: 14.1 KG

Price per unit   (Order No vib-50441) - not available (_) Colour: silver high polish, Dimensions (WxDxH): 500 X 400 X 86 mm, Weight: 14.1 KG

Price per unit   (Order No vib-50445) - not available (_) Colour: granite, Dimensions (WxDxH): 500 X 400 X 62 mm, Weight: 30.5 KG



HS Spikes

Enlarge
Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ HS spikes receive vibrations from vibrating bodies like speakers (such as diaphragms) and devices (such as transformers and reduces them. The vibrations are absorbed through the high pressure point achieved, where the maximum weight (speakers, devices) is concentrated on a minimum point (point of the spike). Most notably, the bass acoustics sound clearer, cleaner and more distinct. Thus, the bass is not transmitted to the furnishings and buildings, but can develop freely in the room.

Each ViaBlue HS Spike consists of a total of 4 components: the main absorber cone, a base plate, the M6 to M6 thread stick and an M6 drive-in nut. Not only are the acoustics more distinct, but visually the HS spikes are an eye-catcher. Material/ ground: brass, black-chrome, Ø = 0.70 inch, M6 threads, loads of at least 50 kg per set (4 spikes per box)

With the M6 to M6 thread stick included, HS spikes can be tightly connected with speakers or devices. This ensures a steady state and the best possible connection of the absorption reducer to the vibrating. For speaker cases and devices with built-in M8 threads, special M6/M8 thread sticks go from the HS spikes M6 threads to M8 threads. Optionally M6 to M4, M6 to M8, M6 to M10, M6 to M12 and M6 to 1/4"-20UNC are available.

The three-part HS spikes are adjustable in height. The initial height is 1.5 inch. The maximum height adjustment recommended is 0.15 inch. The spikes are delivered with drive-in nuts.

Technical specifications:

  • Basic height: 38 mm
  • Height adjustments: 4 mmØ
  • Max diameter: 18 mm
  • Max load capacity: 50 KG / set
  • Number of total parts: 16 pieces

Price for 4 pcs   (Order No vib-50200) EUR 31,98 excl. VAT: € 26.87 / $ 32.79 Colour: black

Price for 4 pcs   (Order No vib-50205) EUR 35,87 excl. VAT: € 30.14 / $ 36.77 Colour: gold

Price for 4 pcs   (Order No vib-50210) EUR 31,98 excl. VAT: € 26.87 / $ 32.79 Colour: silver



QTC Spikes

Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ HS spikes receive vibrations from vibrating bodies like speakers (such as diaphragms) and devices (such as transformers and reduces them. The vibrations are absorbed through the high pressure point achieved, where the maximum weight (speakers, devices) is concentrated on a minimum point (point of the spike). Most notably, the bass acoustics sound clearer, cleaner and more distinct. Thus, the bass is not transmitted to the furnishings and buildings, but can develop freely in the room.

Each ViaBlue HS Spike consists of a total of 4 components: the main absorber cone, a base plate, the M6 to M6 thread stick and an M6 drive-in nut. Not only are the acoustics more distinct, but visually the HS spikes are an eye-catcher. Material/ ground: brass, black-chrome, Ø = 0.70 inch, M6 threads, loads of at least 50 kg per set (4 spikes per box)

With the M6 to M6 thread stick included, HS spikes can be tightly connected with speakers or devices. This ensures a steady state and the best possible connection of the absorption reducer to the vibrating. For speaker cases and devices with built-in M8 threads, special M6/M8 thread sticks go from the HS spikes M6 threads to M8 threads. Optionally M6 to M4, M6 to M8, M6 to M10, M6 to M12 and M6 to 1/4"-20UNC are available.

The three-part HS spikes are adjustable in height. The initial height is 1.5 inch. The maximum height adjustment recommended is 0.15 inch. The spikes are delivered with drive-in nuts.

Technical specifications:

  • Basic height: 15 mm
  • Height adjustments: 1 mm | 2 mm
  • Max diameter: 30 mm
  • Max load capacity: 200 KG / set
  • Number of total parts: 28 pieces

Price for 4 pcs   (Order No vib-50100) EUR 73,98 excl. VAT: € 62.17 / $ 75.85 Colour: black / gold

Price for 4 pcs   (Order No vib-50115) EUR 73,98 excl. VAT: € 62.17 / $ 75.85 Colour: black / silver

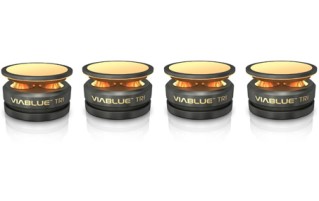

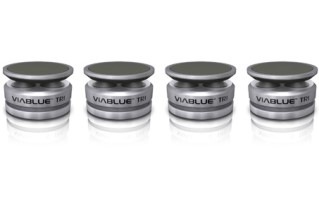

TRI Absorber

Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ TRI absorbers receive vibrations from vibrating bodies like speakers (such as diaphragms) and devices (such as transformers and reduces them. Through a high pressure concentrated on three minimum points (peaks), maximum pressure is built up as a connection point between vibrating bodies and their base. Through the extreme pressure points, the vibrations are eliminated. This leads to vibration absorption.

The functional principle of the TRI Absorber is broken down into three task areas: 1.) reception of vibrations, 2.) concentration of the vibrations received/gathered on three pressure points, 3.) deflection of the absorbed vibrations on the base.

Vibrations are received through the vibration reception disk. The vibrations, gathered on three especially hardened spikes (peaks), are transferred via the integrated master disk. The excess pressure creates a maximum of three pressure points. The vibrations are eliminated. In this way, the vibrations of speakers and devices are not transmitted to furnishings and buildings and do not cause any static noise.

A total of 4 absorbers per set are included in delivery. One TRI absorber consists of: a threaded grounding component, a rotary disk of adjustable height, three steel-hardened spikes (peaks), and a hardened master disk incorporated in a vibration reception disk. Absorbers are used, for example, for acoustic decoupling of the speaker cases from the base. In this way, feedback is avoided. Clean acoustics from the speaker are thereby ensured. The bass is not transferred to furnishings and buildings but can develop freely in the room.

Technical specifications:

  • Basic height: 15 mm
  • Height adjustments: 1 mm | 2 mm
  • Max diameter: 30 mm
  • Max load capacity: 200 KG / set
  • Number of total parts: 28 pieces

Price for 4 pcs   (Order No vib-50150) EUR 73,98 excl. VAT: € 62.17 / $ 75.85 Colour: black / gold

Price for 4 pcs   (Order No vib-50165) EUR 73,98 excl. VAT: € 62.17 / $ 75.85 Colour: black / silver

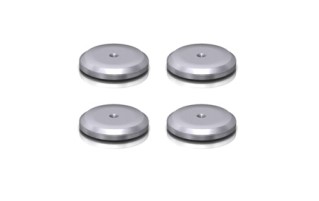

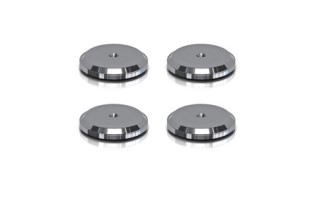

HS Replacement discs

Enlarge
Enlarge
Enlarge
Enlarge
Product description:

HS spikes come inclusive discs. HS replacement discs are spare parts only.

Technical specifications:

  • Basic height: 2.1 mm
  • Max diameter: 11 mm
  • Max load capacity: 100 KG / disc
  • Number of total parts: 4 pieces

Price for 4 pcs   (Order No vib-50220) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Colour: black

Price for 4 pcs   (Order No vib-50225) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Colour: gold

Price for 4 pcs   (Order No vib-50230) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Colour: silver



QTC Replacement discs

Enlarge
Enlarge
Enlarge
Product description:

QTC spikes come inclusive discs. QTC replacement discs are spare parts only.

Technical specifications:

  • Basic height: 3.15 mm
  • Max diameter: 11 mm
  • Max load capacity: 100 KG / disc
  • Number of total parts: 8 pieces

Price for 4 pcs   (Order No vib-50120) EUR 8,98 excl. VAT: € 7.55 / $ 9.21 Colour: black / gold

Price for 4 pcs   (Order No vib-50125) EUR 8,98 excl. VAT: € 7.55 / $ 9.21 Colour: silver / black



QTC Spikes peaks

Enlarge
Enlarge
Enlarge
Product description:

ViaBlue™ QTC replacement spike-peaks serve as replacement parts.

Technical specifications:

  • Basic height: 9.15 mm
  • Max diameter: 6.6 mm
  • Max load capacity: 50 KG per peak
  • Number of total parts: 4 pieces

Price for 4 pcs   (Order No vib-50127) EUR 8,98 excl. VAT: € 7.55 / $ 9.21 Colour: gold

Price for 4 pcs   (Order No vib-50128) EUR 8,98 excl. VAT: € 7.55 / $ 9.21 Colour: black



Thread sticks

Enlarge
Enlarge
Product description:

ViaBlue™ QTC and HS spikes include M6 thread sticks. Optionally other types with thread sizes M4, M8, M10, M12 and M6/"-20 UNC are available. Spikes can be installed easily by using the right thread type fitting to your speaker's build in threads.

Technical specifications:

  • Basic height: 15 mm
  • Max diameter: M4 to M12
  • Max load: 200 KG / set
  • Colour: black

Price for 4 pcs   (Order No vib-50134) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Thread: M6/M4

Price for 4 pcs   (Order No vib-50135) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Thread: M6/M8

Price for 4 pcs   (Order No vib-50136) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Thread: M6/M10

Price for 4 pcs   (Order No vib-50137) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Thread: M6/M12

Price for 4 pcs   (Order No vib-50140) EUR 7,98 excl. VAT: € 6.71 / $ 8.18 Thread: M6/"-20 UNC



Enlarge Product description:

ViaBlue™ XS adapters F jack to F jack are used for extending cables. High-end internal contacts of the ViaBlue™ XS adapter series guarantee absolutely low resistance transmissions of audio and video signals. The contact surfaces are 24 karat gold-plated.

The ViaBlue™ XS series provides adapters for both audio and video devices. XS adapters help to organize a professional cable management.

Technical specifications:

  • Outter diameter: 12 mm (black cube)
  • Finishing: 24 Karat Gold plated
  • Total length: 42.2 mm
  • Contact: F type norm

Price per pair   (Order No vib-40880) EUR 14,98 excl. VAT: € 12.59 / $ 15.36
