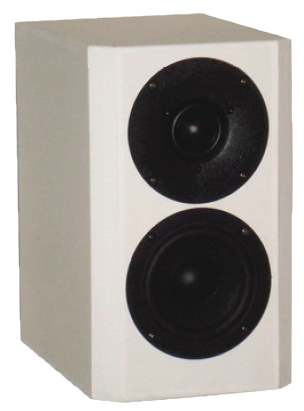

Wavecor Kit 120-30, Shelf speaker   as in Wavecor

Technical data
- impedance: 4 Ohm
- sensivity (2,83V/1m): 81,5 dB
- size (HxWxD): 280 x 168 x 240 mm
- frequency range (-8dB): 37 - 30000 Hz
- crossover frequency(s): 1600 Hz
- speaker type: bass reflex

Wavecor Kit 120-30 is a monitor with premium Wavecor drivers developed by Selmoni Speakers and Cattaneo Acoustics.

The Wavecor Kit 120-30 has an extremely balanced frequency response.

The kit contains a Wavecor dome tweeter TW030WA05 and a Wavecor woofer WF120 BD01.

PDF data sheet





Our kit consists of

  • Wavecor silk dome tweeter TW030WA05, 4 Ohm
  • Wavecor Mid/Woofer WF120BD01, die cast, 4 Ohm
  • Bass reflex tube Streamline 30
  • Polyester damping material
  • 2 pairs Binding Post PK31 (per pair, red and black)
  • 1.5m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, 8 pieces
  • Grille circuit board LP/RA160,
  • Plan for DIY kit

parts for the crossover:
  • MKT capacitor 15uF
  • MKT capacitor 33uF
  • MKP capacitor Q4 10uF / 400V
  • 0.7 mm IT air core coil 0.47 mH/0.57 Ohm
  • 0.7 mm core coil 1.8 mH/0.80 Ohm
  • H40 core coil 1.2 mH/0.15 Ohm
  • Corobar coil 0.22 mH
  • Ceramic resistor 10 Ohm/5 Watt
  • MOX4 resistor 2.2 Ohm/4 Watt (red-red-gold)
  • MOX4 resistor 2.7 Ohm/4 Watt (red-purple-gold)

Kit without cabinet, price per speaker EUR 229,00 excl. VAT: € 192.44 / $ 221.30




Kit with high-end crossover

In our high-end version only air core coils are used in the signal path to the woofer and in the signal path to the tweeter a Jantzen Z-CAP is employed

  • Jantzen Cross Cap MKP capacitor 15 uF / 400V
  • Jantzen Cross Cap MKP capacitor 33 uF / 400V
  • Jantzen Z-standard MKP capacitor 10 uF / 400V
  • Mundorf air core coil L71, 0.47 mH/0.57 Ohm
  • Mundorf air core coil L140, 0.22 mH/0.12 Ohm
  • Mundorf air core coil L140, 1.2 mH/0.33 Ohm
  • 0.7 mm core coil 1.8 mH/0.80 Ohm
  • Ceramic resistor 10 Ohm/5 Watt
  • MOX4 resistor 2.2 Ohm/4 Watt (red-red-gold)
  • MOX4 resistor 2.7 Ohm/4 Watt (red-purple-gold)

Kit with high-end crossover without cabinet, price per speaker EUR 252,00 excl. VAT: € 211.76 / $ 243.53

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • electrolytic capacitor, etched, 15 uF/100 Vdc
  • air core coil L7, 0.56 mH/0.55 Ohm
  • MOX4 resistor 5.6 Ohm/4 Watt (green-blue-gold)


Price per impedance correction for one speaker, to be mounted on a small wooden board.   EUR 6,40 excl. VAT: € 5.38 / $ 6.18
