PCB's

Universal PCB, small


Enlarge



If you are unsure which PCB to use we recommend universal PCB's.

Epoxy glass fibre laminate PCB 150 x 115 mm with 35 um Cu layer.

Available with spacer: Order No. I-2754,
Price   EUR 5,70 excl. VAT: € 4.79 / $ 4.48

without accessories: Order No. I-8805017,
Price   EUR 4,70 excl. VAT: € 3.95 / $ 3.69

fitting connecting terminals for assembly:
Enlarge 2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit (Order No str-klm-2) EUR 1,10 excl. VAT: € 0.92 / $ 0.86 2-pin

Price per unit (Order No str-klm-4) EUR 2,20 excl. VAT: € 1.85 / $ 1.73 4-pin


Universal PCB, large


Enlarge




Epoxy glass fibre laminate PCB 220 x 155 mm with 35 um Cu layer.

tin plated with spacer: Order No. I-2755,
Price   EUR 12,90 excl. VAT: € 10.84 / $ 10.13

tin plated, without accessories: Order No. I-8805002,
Price   EUR 11,70 excl. VAT: € 9.83 / $ 9.19

fitting connecting terminals for assembly:
Enlarge 2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit (Order No str-klm-2) EUR 1,10 excl. VAT: € 0.92 / $ 0.86 2-pin

Price per unit (Order No str-klm-4) EUR 2,20 excl. VAT: € 1.85 / $ 1.73 4-pin


Grid PCB's

If you do not wish a PCB with copper conductors, grid PCB's made of epoxy glass fibre laminate are also available. The components are placed on one side and connected on the other.

These PCB come in different sizes, however, all of them have a grid spacing of 5 mm.


Enlarge



RA140, 140 x 102 mm
Order No. I-2765,   Price   EUR 3,70 excl. VAT: € 3.11 / $ 2.91

RA160, 159 x 127 mm
Order No. I-2766,   Price   EUR 5,10 excl. VAT: € 4.29 / $ 4.01

RA 240, 240 x 165 mm
Order No. I-2767,   Price   EUR 7,60 excl. VAT: € 6.39 / $ 5.97

fitting connecting terminals for assembly:

Terminal block, small

Enlarge   2- and 4-pin terminal block for PCB mount, terminal body: blue compound, terminal distance 5 mm, for wire up to 2.5 mm² diameter.

Price per unit (Order No str-klk-2) EUR 0,60 excl. VAT: € 0.50 / $ 0.47 2-pin

Price per unit (Order No str-klk-4) EUR 0,95 excl. VAT: € 0.80 / $ 0.75 4-pin


Terminal block gold plated, big

Enlarge 2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit (Order No str-klm-2) EUR 1,10 excl. VAT: € 0.92 / $ 0.86 2-pin

Price per unit (Order No str-klm-4) EUR 2,20 excl. VAT: € 1.85 / $ 1.73 4-pin


PCB, small

Epoxy glass fibre laminate PCB 120 x 73 mm with 35 um Cu layer, tin plated. Leiterplatte

Picture left: mounting side view (conductors are shining through)
Below left: terminals E+, E- for connection to the amplifier
Right: terminals for connection to the drivers

For connection of
- A bass driver with 44 mm diameter coil
- Capacitor 37.5 x 16 mm with resistor 5 Watt
- A tweeter with PTC resistor
- 3 capacitors
- 2 resistors
- 1 coil with 32 mm diameter

Order No. I-2763,    - not available (_)

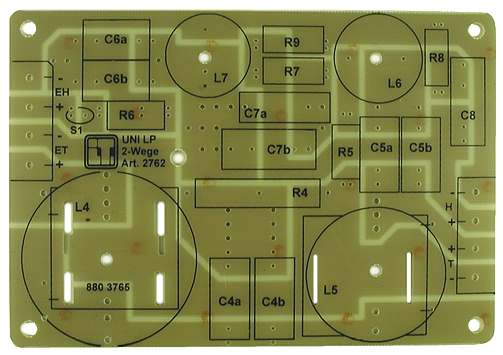

PCB, large

Epoxy glass fibre laminate PCB175 x 120 mm with 35 um Cu layer, tin plated. Leiterplatte

The picture left shows 4 terminals to connect to the amplifier EH+,- ET+,- for bi-wiring.

Two of each may also be connected with one another.

To the right in the picture 4 outputs to the drivers H+,- and T+,- can be seen.

For connection of
- a bass driver with
- 3 coils - 62, 55 and 32 mm diameter,
- 2 capacitors,
- 2 resistors

- a tweeter with PTC resistor,
- 3 capacitors,
- 4 resistors,
- 1 coil with 32 mm diameter

Order No. I-2762,    Price  - not available (_)

fitting connecting terminals for assembly:
Enlarge 2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit (Order No str-klm-2) EUR 1,10 excl. VAT: € 0.92 / $ 0.86 2-pin

Price per unit (Order No str-klm-4) EUR 2,20 excl. VAT: € 1.85 / $ 1.73 4-pin

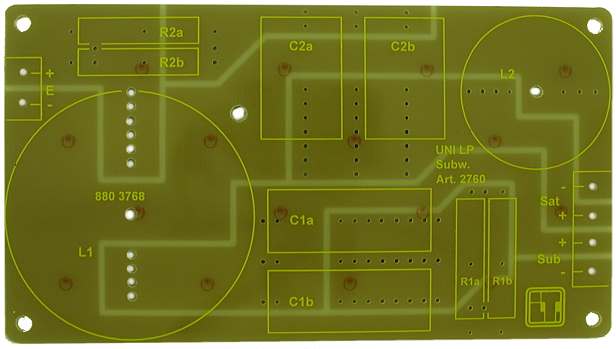

Subwoofer PCB, large

Epoxy glass fibre laminate PCB 220 x 120 mm with 35 um Cu layer, tin plated. Subwoofer-Leiterplatte
In the picture to the left are the connections to the amplifier, to right the connection to the subwoofer and satellites. For connection to
- a subwoofer (1.4 mm coil, capacitor, resistor) and
- a satellite speaker (max. 3 capacitors, 4 resistors, 1 coil)

Order No. I-2760,     Price   - not available (_)

fitting connecting terminals for assembly:
Enlarge 2- and 4-pin terminal block for PCB mount, terminal body: black GRP compound, terminal: gold plated brass, terminal distance 10 mm, for wire up to 4 mm² diameter.

Price per unit (Order No str-klm-2) EUR 1,10 excl. VAT: € 0.92 / $ 0.86 2-pin

Price per unit (Order No str-klm-4) EUR 2,20 excl. VAT: € 1.85 / $ 1.73 4-pin




Equalizer PCB

Entzerrer-Leiterplatte Epoxy glass fibre laminate PCB 120 x 85 mm with 35 um Cu layer, tin plated.

For connection of an equalisation system for impedance linearisation. The following component's fit on the PCB:
- 1 coil with 55 mm diameter
- 3 parallel capacitors of 52.5 x 25 mm and
- 2 parallel resistors 10 Watt

If just one RLC element is needed only terminals E+ and E- are required.

Order No. I-2761,     Price   - not available

additionally connecting terminals for assembly, 10 mm grid, up to 4 mm2 cable diameter:
2-pin, Order No. I-7207,     Price   EUR 1,10 excl. VAT: € 0.92 / $ 0.86       (depending on application 1 or 2 are required)


Monacor PCB's

Monacor-Leiterplatte DNU-100Epoxy glass fibre laminate Epoxyd FR4 with 70 um tin plated conductor tracks. The wide tracks are suitable for high power application like PA or high-end (picture left: DNU-100).
Order No. Size
in cm
Application Price
mo-DNU-400 27 x 17.5 3 way crossover etc. - not available (_)
mo-DNU-200 15 x 13 2 way crossover up to 12 dB - not available (_)
mo-DNU-100 12 x 11 2 way crossover up to 12 dB or
6 dB low pass & 18 dB high pass
- not available (_)
