Anaview

Anaview was originally founded in 2003 as a design house for Class D amplifiers and power supplies. Between 2003 and 2009 Anaview developed custom designs for successful audio companies around the world, based on proprietary circuitry and advanced technology.

A brand of ETAL GROUP

Anaview is brand name of ETAL Group. Since 1968, ETAL Group has been a leading supplier of in-house developed high-performance magnetic components, primarily transformers and inductors. Together with Anaview they develop, manufacture and sell magnetic components and audio amplifiers on a world wide market. With high service level and commitment and in close cooperation with their customers, ETAL shall operate as an innovative supplier through the entire component life cycle.


Anaview ALA Serie

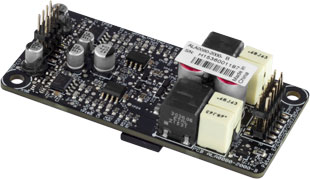

Anaview ALA0080-2000

Enlarge
  • Max output power: 2 x 45 Wrms into 6 @ 25 Vdc (1% THD)
  • Entirely differential patented APC (adaptive pole control) amplifier technology
  • 80 kHz load independent frequency range (-3 dB)
  • Very low THD in the audio band
  • 115 dB dynamic range
  • Output impedance<5 m @ 100 Hz
  • Differential inputs with 0.1% resistors for improved CMRR
  • Supply, Min: +9 Vdc (11.5 V to start) Max: +30 Vdc Recommended: +12 Vdc to +25 Vdc
  • Size (l x w x h): 68 mm x 33 mm x 18,5 mm
  • Weight: 26 g

PDF data sheet

Amplifier + cable set + adaptor PCB Price per set
  (Order No str-ala0080-2000) EUR 110,00

Amplifier Price per unit
  (Order No aw-ala0080-2000) EUR 70,00

Adaptor PCB Price per unit
  (Order No aw-pcb-ala0080-ifb-a) EUR 36,00

Cable set Price per unit
  (Order No aw-kabelset-ala0080-2000) EUR 12,85


Anaview ALC Serie

Anaview ALC0100-2200

Enlarge
  • Max output power: 2 x 50 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power BTL mode: 100 Watt 8 Ohm (1 % Klirr)
  • Output impedance (100Hz) 6 mΩ typical
  • Size (l x w x h): 130 mm x 75 mm x 30 mm
  • Weight: 150 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc0100-2200) EUR 112,00

Amplifier Price per unit
  (Order No aw-alc0100-2200) EUR 105,00

Cable set Price per unit
  (Order No aw-kabelset-alc0100-2200) EUR 12,85

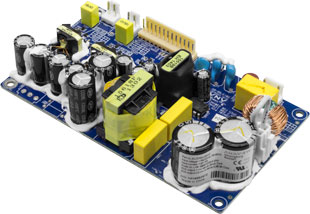

Anaview ALC0100-2300

Enlarge
  • Max output power: 2 x 50 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power BTL mode: 100 Watt Ohm @ 230 Vac (1 % Klirr)
  • Output impedance (100Hz) 6 mΩ typical
  • Standby Converter Option - offers Aux V1 8 V keep-alive supply, ability to place module in standby mode (i.e. DISABLE)
  • Size (l x w x h): 130 mm x 75 mm x 30 mm
  • Weight: 150 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc0100-2300) EUR 112,00

Amplifier Price per unit
  (Order No aw-alc0100-2300) EUR 105,00

Cable set Price per unit
  (Order No aw-kabelset-alc0100-2300) EUR 12,85

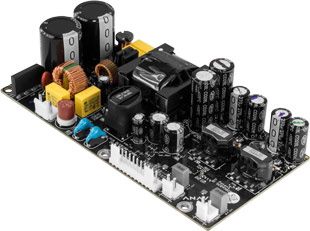

Anaview ALC0180-2300

Enlarge
  • Max output power: 2 x 90 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power BTL mode: 180 Watt 8 Ohm @ 230 Vac (1 % Klirr)
  • Output impedance (100 Hz) 3 mΩ typical
  • Size (l x w x h): 130 mm x 75 mm x 38 mm
  • Weight: 220 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc0180-2300) EUR 133,00

Amplifier Price per unit
  (Order No aw-alc0180-2300) EUR 123,00

Cable set Price per unit
  (Order No aw-kabelset-alc0180-2300) EUR 12,85

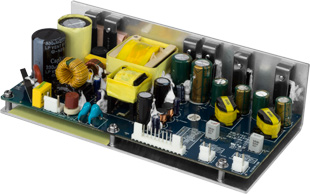

Anaview ALC0240-2300

Enlarge
  • Max output power: 2 x 100 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power BTL mode: 200 Watt 8 Ohm @ 230 Vac (1 % Klirr)
  • Output impedance (100 Hz) 3 mΩ typical
  • Size (l x w x h): 170 mm x 84,5 mm x 46 mm
  • Weight: 420 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc0240-2300) EUR 179,00

Amplifier Price per unit
  (Order No aw-alc0240-2300) EUR 170,00

Cable set Price per unit
  (Order No aw-kabelset-alc0240-2300) EUR 12,85


Anaview ALC0300-1300

Enlarge
  • Max output power: 350 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power: 200 Watt 8 Ohm @ 230 Vac (1 % Klirr)
  • Output impedance (100 Hz) 4 mΩ typical
  • Size (l x w x h): 120 mm x 154 mm x 50 mm

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc0300-1300) EUR 199,00

Amplifier Price per unit
  (Order No aw-alc0300-1300) EUR 190,00

Cable set Price per unit
  (Order No aw-kabelset-alc0300-1300) EUR 12,85

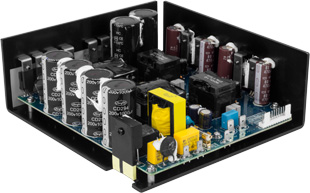

Anaview ALC1000-1300

Enlarge
  • Max output power: 1000 Watt 4 Ohm @ 230 Vac (1 % Klirr)
  • Max output power: 750 Watt 6 Ohm @ 230 Vac (1 % Klirr)
  • Max output power: 630 Watt 8 Ohm @ 230 Vac (1 % Klirr)
  • Output impedance (100 Hz) 3 mΩ typical
  • Size (l x w x h): 180 mm x 166 mm x 63 mm

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-alc1000-1300) EUR 319,00

Amplifier Price per unit
  (Order No aw-alc1000-1300) EUR 310,00

Cable set Price per unit
  (Order No aw-kabelset-alc1000-1300) EUR 12,85


Anaview AMS Serie

Anaview AMS0100-2300

Enlarge
  • Max output power: 2 x 50 Wrms into 4 @ 1 % THD @ 230 Vac
  • Max output power BTL mode: 120 Wrms into 6 @ 1% THD @ 230 Vac
  • Patented AMS (adaptive modulation servo) amplifier technology
  • 100 kHz load independent frequency range (-3 dB)
  • Almost flat THD vs. frequency
  • 115 dB dynamic range
  • Output impedance<10 m from 20 Hz to 20 kHz
  • Differential inputs with 0.1 % resistors for improved CMRR
  • Automatic voltage doubler for universal mains
  • Meets ErP and Energystar
  • UL recognized
  • CE approved
  • Size (l x w x h): 130 mm x 75 mm x 30 mm
  • Weight: 170 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-ams0100-2300) EUR 160,00

Amplifier Price per unit
  (Order No aw-ams0100-2300) EUR 150,00

Cable set Price per unit
  (Order No aw-kabelset-ams0100-2300) EUR 12,85


Anaview AMS1000-2600

Enlarge
  • Maximum long term output power: 2 x 500 Watt into 2 @ 1% THD+N (Measured with both channels driven)
  • Maximum long term output power BTL mode: 900 Watt into 4 @ 1% THD+N (Measured during a 30 second interval)
  • Patented AMS (Adaptive Modulation Servo) amplifier technology
  • Almost flat THD versus frequency plot
  • 115 dB dynamic range
  • Automatic voltage doubler for universal mains (110 V / 230 V)
  • Meets EuP and EnergyStar requirements
  • UL recognized
  • CE approved
  • +/- 17 V DC AUX outputs
  • AUX output for hanger channel
  • Weight: 1500 g

PDF data sheet

Amplifier + cable set Price per set
  (Order No str-ams1000-2600) EUR 369,00

Amplifier Price per unit
  (Order No aw-ams1000-2600) EUR 360,00

Cable set Price per unit
  (Order No aw-kabelset-ams1000-2600) EUR 12,85
