Ribbon Tweeter

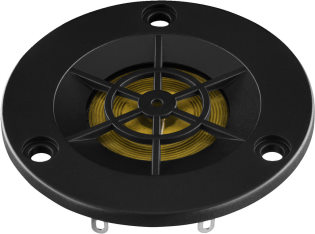

Monacor RBT-56

order no. mo-013210

EUR 55,70 excl. VAT: € 46.81 / $ 50.55

.

  • power handling (continuous/programme) = 10/20 W
  • frequency range = 5000-40000 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • mounting diameter d = 40 mm
  • overall diameter d = 56,5 mm
  • mounting depth (not countersunk) t = 10 mm
  • mass m = 0,035 kg
PDF data sheet

show kits to this chassis hide kits

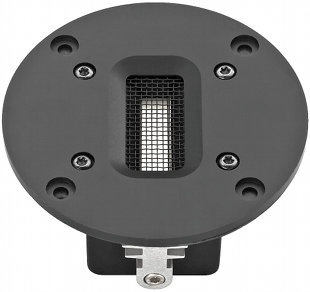

Monacor RBT-10

order no. mo-105700

EUR 209,00 excl. VAT: € 175.63 / $ 189.68

ribbon tweeter. The magnet system is based on Neodymium technology. A pair of speakers is delivered (the price is for one pair).

  • power handling (continuous/programme) = 12/25 W
  • frequency range = 4000-40000 Hz
  • impedance R = 5 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • mounting diameter d = 55x70 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 0,42 kg

show kits to this chassis hide kits

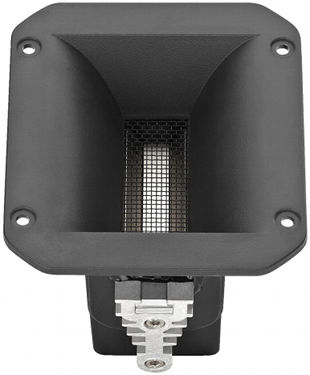

Monacor RBT-35 SR

order no. mo-105720

EUR 233,60 excl. VAT: € 196.30 / $ 212.01

ribbon tweeter. The magnet system is based on Neodymium technology. A pair of speakers is delivered (the price is for one pair).

  • power handling (continuous/programme) = 12/25 W
  • frequency range = 3000-30000 Hz
  • impedance R = 7 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • mounting diameter d = 70x90 mm
  • overall diameter d = 110x98 mm
  • mounting depth (not countersunk) t = 101 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

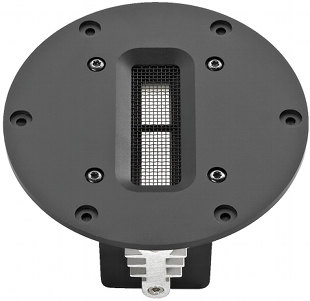

Monacor RBT-20

order no. mo-105710

EUR 299,00 excl. VAT: € 251.26 / $ 271.36

ribbon tweeter. The magnet system is based on Neodymium technology. A pair of speakers is delivered (the price is for one pair).

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 2800-40000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • mounting diameter d = 55x95 mm
  • overall diameter d = 127 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 0,75 kg

show kits to this chassis hide kits

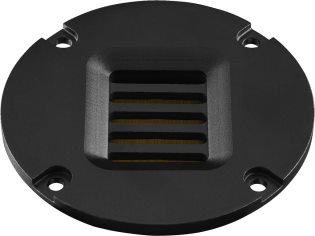

Monacor AIRMT-85

order no. mo-013190

EUR 172,65 excl. VAT: € 145.08 / $ 156.69

.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 2000-30000 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • mounting diameter d = 66 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 36 mm
  • mass m = 0,3 kg
PDF data sheet

show kits to this chassis hide kits

Monacor AIRMT-130

order no. mo-013200

EUR 270,54 excl. VAT: € 227.34 / $ 245.53

.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 3000-30000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • mounting diameter d = 71x111 mm
  • mounting depth (not countersunk) t = 38 mm
  • mass m = 0,585 kg
PDF data sheet

show kits to this chassis hide kits

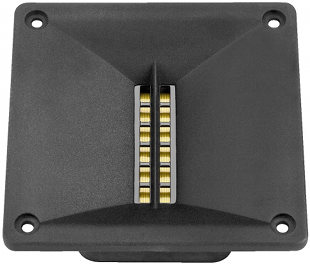

Monacor RBT-1000

order no. mo-101610

EUR 136,70 excl. VAT: € 114.87 / $ 124.06

ribbon tweeter. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1600 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • mounting diameter d = 94x94 mm
  • overall diameter d = 104x104 mm
  • mounting depth (not countersunk) t = 34 mm
  • mass m = 0,175 kg

show kits to this chassis hide kits

Monacor RBT-95

Monacor RBT-95

order no. mo-102250

EUR 76,24 excl. VAT: € 64.07 / $ 69.19

ribbon tweeter. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 5000-22000 Hz
  • resonance frequency fs = 4500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • voice coil diameter = - mm
  • mounting diameter d = 80x45 mm
  • overall diameter d = 95 mm
  • mounting depth (not countersunk) t = 17 mm
  • mass m = 0,12 kg

journal Klang+Ton
06/2006; "Sehr attraktiver Preis und verblüffend gute Messwerte ... vollkommen ohne Tadel.”

Online journal HiFi Selbstbau
2008; "Der preiswerteste Magnetostat auf dem deutschen Markt. Ab 5kHz eingesetzt überzeugt er mit einem hohem Wirkungsgrad von 93dB und einem geringen Klirrfaktor bei mindestens 12dB/Oktave steiler Trennung.”

show kits to this chassis hide kits

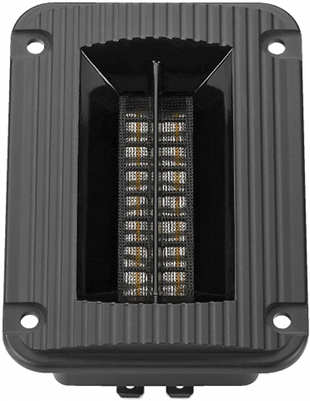

Monacor RBT-95 SR

order no. mo-103790

EUR 98,09 excl. VAT: € 82.43 / $ 89.02

ribbon tweeter. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/70 W
  • frequency range = 5000-22000 Hz
  • resonance frequency fs = 3500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • voice coil diameter = - mm
  • mounting diameter d = 82x47 mm
  • overall diameter d = 95x68 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,16 kg

show kits to this chassis hide kits




Tweeter

Monacor DT-25N

Monacor DT-25N

order no. mo-104010

EUR 51,58 excl. VAT: € 43.34 / $ 46.81

25 mm dome tweeter with silk dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1600 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 46 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 21 mm
  • mass m = 0,07 kg

journal Hobby HiFi
01/2008; "Nicht nur überzeugend ausgewogen und linear, überdies auch überraschend breitbandig. Makellos!”

Online journal HiFi Selbstbau
2008; "Der MONACOR DT-25N ist ein kleiner, pfiffig gemachter Hochtöner. Der Frequenzgang ist bis 8kHz tadellos. Auch der günstige Preis spricht für ihn.”

show kits to this chassis hide kits

Monacor DT-28N

Monacor DT-28N

order no. mo-104020

EUR 50,43 excl. VAT: € 42.38 / $ 45.77

28 mm dome tweeter with silk dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • voice coil diameter = 28 mm
  • mounting diameter d = 46 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 20 mm
  • mass m = 0,07 kg

journal Klang+Ton
"Ein geradezu sensationell günstiges Angebot.”

Online journal HiFi Selbstbau
"Ein extrem kompakter, pfiffig gemachter Hochtöner. Der DT-28N verrichtet seit 5 Jahren in unserem kleinen Studiomonitor seine Dienste und fällt besonders dadurch auf das er nicht auffällt. Auch wenn man 5 Stunden am Stück Musik hört geht dieser Hochtöner niemals auf den Nerv und bleibt immer angenehm.”

show kits to this chassis hide kits

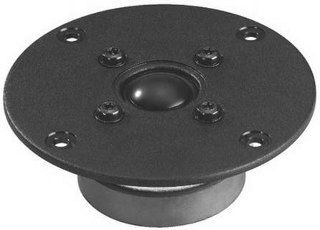

Monacor DT-19SU

order no. mo-101970

EUR 40,00 excl. VAT: € 33.61 / $ 36.30

19 mm dome tweeter with fabric dome. A double magnet system increases sensitivity and provides better control of the voice coil. It reduces the magnetic stray fields, what is good for A/V applications.

  • power handling (continuous/programme) = 50/80 W
  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 19 mm
  • mounting diameter d = 60 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 33 mm
  • mass m = 0,45 kg

show kits to this chassis hide kits

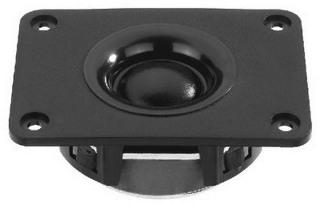

Monacor DT-75/8

order no. mo-101300

EUR 37,88 excl. VAT: € 31.83 / $ 34.38

25 mm dome tweeter with fabric dome. Voice coil windings immersed in magnetic fluid increase short term power handling capacity.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 3000-20000 Hz
  • resonance frequency fs = 2000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 62x70 mm
  • overall diameter d = 69x93 mm
  • mounting depth (not countersunk) t = 28 mm
  • mass m = 0,4 kg

show kits to this chassis hide kits

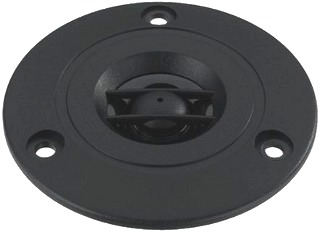

Monacor DT-74/8

order no. mo-102070

EUR 18,22 excl. VAT: € 15.31 / $ 16.54

11 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 15/30 W
  • frequency range = 3000-18000 Hz
  • resonance frequency fs = 2000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • voice coil diameter = 11 mm
  • mounting diameter d = 50 mm
  • overall diameter d = 74 mm
  • mounting depth (not countersunk) t = 24 mm
  • mass m = 0,115 kg

show kits to this chassis hide kits

Monacor HT-22/8

order no. mo-100180

EUR 13,40 excl. VAT: € 11.26 / $ 12.16

12 mm tweeter with paper cone.

  • power handling (continuous/programme) = 10/20 W
  • frequency range = 2000-19000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 12 mm
  • mounting diameter d = 63 mm
  • overall diameter d = 92 mm
  • mounting depth (not countersunk) t = 28 mm
  • mass m = 0,17 kg

show kits to this chassis hide kits

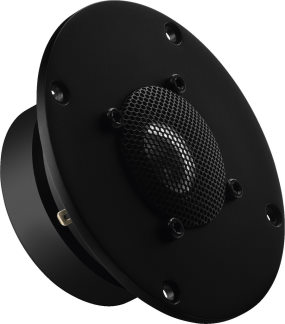

Monacor DT-352NF

order no. mo-105900

EUR 84,55 excl. VAT: € 71.05 / $ 76.73

.

  • power handling (continuous/programme) = 80/150 W
  • frequency range = 800-25000 Hz
  • resonance frequency fs = 800 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 46 mm
  • mass m = 0,77 kg
PDF data sheet

show kits to this chassis hide kits

Monacor DT-100

Monacor DT-100

order no. mo-100040

EUR 41,51 excl. VAT: € 34.88 / $ 37.67

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 80 x 116 mm
  • mounting depth (not countersunk) t = 26 mm
  • mass m = 0,58 kg

show kits to this chassis hide kits

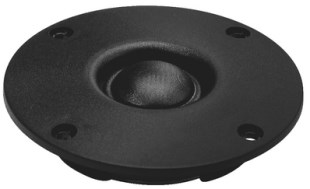

Monacor DT-107

Monacor DT-107

order no. mo-102640

EUR 44,39 excl. VAT: € 37.30 / $ 40.29

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 80/130 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 71 mm
  • overall diameter d = 96,5 mm
  • mounting depth (not countersunk) t = 23 mm
  • mass m = 0,3 kg

journal Car-HiFi
"... eine Hochtonkalotte mit weit hinaufreichendem Frequenzgang, gutem Rundstrahlverhalten und hoher Belastbarkeit ...”

show kits to this chassis hide kits

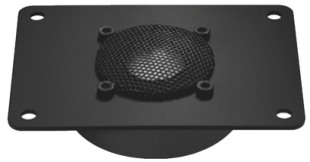

Monacor DT-250

Monacor DT-250

order no. mo-100090

- not available

25 mm dome tweeter with titanium dome.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 74 mm
  • overall diameter d = 86 x 116 mm
  • mounting depth (not countersunk) t = 26 mm
  • mass m = 0,55 kg

show kits to this chassis hide kits

Monacor DT-99

Monacor DT-99

order no. mo-103880

EUR 47,90 excl. VAT: € 40.25 / $ 43.47

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-18000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,52 kg

journal Klang+Ton
"Es ist immer wieder erstaunlich, welche Qualität man für so wenig Geld liefern kann.”

journal Hobby HiFi
”Klassischer Kalottenhochtöner in einwandfreier Qualität. Großes Lob verdient die Pegelfestigkeit.”

show kits to this chassis hide kits

Monacor DT-101SK

Monacor DT-101SK

order no. mo-100060

EUR 45,94 excl. VAT: € 38.61 / $ 41.69

25,4 mm dome tweeter with silk dome.

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 900 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 46 mm
  • mass m = 0,5 kg

show kits to this chassis hide kits

Monacor DT-105

Monacor DT-105

order no. mo-100050

EUR 39,76 excl. VAT: € 33.41 / $ 36.08

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 30 mm
  • mass m = 0,5 kg

show kits to this chassis hide kits

Monacor DT-109

Monacor DT-109

order no. mo-103840

- not available

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 40 mm
  • mass m = 0,61 kg

show kits to this chassis hide kits

Monacor DT-140

order no. mo-105670

EUR 33,24 excl. VAT: € 27.93 / $ 30.17

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 103 mm
  • mounting depth (not countersunk) t = 30 mm
  • mass m = 0,094 kg

show kits to this chassis hide kits

Monacor DT-254

Monacor DT-254

order no. mo-102780

EUR 53,68 excl. VAT: € 45.11 / $ 48.72

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 90/150 W
  • frequency range = 1500-22000 Hz
  • resonance frequency fs = 900 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 85 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 38 mm
  • mass m = 0,53 kg

journal Klang+Ton
04/2008; "Eine Überraschung im Testfeld!”

journal Hobby HiFi
05/2000; "Welcher Hochtöner kann da noch mithalten?”

Online journal HiFi Selbstbau
2008; "Ein unkonventionell gemachter Hochtöner mit hoher Alltagstauglichkeit.”

show kits to this chassis hide kits

Monacor DT-300

Monacor DT-300

order no. mo-103860

EUR 54,80 excl. VAT: € 46.05 / $ 49.73

30 mm dome tweeter with silk dome.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 2000-19000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • voice coil diameter = 30 mm
  • mounting diameter d = 89 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 53 mm
  • mass m = 0,7 kg

Online journal HiFi Selbstbau
"Der DT-300 ist aufgrund seines großen Kalottendurchmessers von 30mm und des hohen Wirkungsgrades von 92dB/2,83V/m prädestiniert für höhere Schalldruckpegel und tiefere Einsatzfrequenzen. Für laute 2-Wege-Systeme mit einer Trennfrequenz von > 2,1kHz ist er optimal geeignet und konkurrenzlos günstig.”

show kits to this chassis hide kits

Monacor WG-300 (Waveguide for DT-300)

Monacor WG-300 (Waveguide for DT-300)

order no. mo-110110

- not available

waveguide.

show kits to this chassis hide kits

Monacor DT-280

Monacor DT-280

order no. mo-103850

- not available

28 mm dome tweeter with silk dome.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1100 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 28 mm
  • mounting diameter d = 86 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 33 mm
  • mass m = 0,75 kg

show kits to this chassis hide kits

Monacor DT-284

order no. mo-131410

EUR 102,50 excl. VAT: € 86.13 / $ 93.03

28 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/100 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1300 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 28 mm
  • mounting diameter d = 45 mm
  • overall diameter d = 60 mm
  • mounting depth (not countersunk) t = 21 mm
  • mass m = 0,17 kg

show kits to this chassis hide kits

Monacor DTM-104/4

order no. mo-105320

EUR 27,67 excl. VAT: € 23.25 / $ 25.11

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 45/100 W
  • frequency range = 2000-19000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 32 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

Monacor DTM-104/8

order no. mo-105330

EUR 27,67 excl. VAT: € 23.25 / $ 25.11

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 45/100 W
  • frequency range = 2000-19000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 80 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 32 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
