Neutrik NAC3FCA - Powercon jack, blue

Neutrik connectors, Neutrik NAC3FCA - Powercon jack, blue

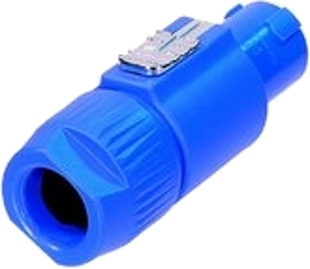

Neutrik NAC3FCA PowerCon Locking 3 pole Mains Connector.
  • Fast and easy locking system
  • High current capacity (20 A rated)
  • Extremely robust and reliable
  • Meets all prevailing safety standards
  • UL recognized, VDE certified and SEV approved
  • Very good cable handling and protection

Technical Data:

  • Electrical Rated current: 20 A rms
  • Wire size 2.5 mm²
  • Rated voltage: 250 V ac
  • Dielectric strength: 4240 V pp
  • Contact resistance: = 3 m after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M
  • Creepage distance: according to IEC 664-1

Safety ground:

  • Premating: Mechanical
  • Retention method: Quicklock with securing lever
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 5 - 15 mm
  • Cable retention force: = 220 N, depending on cable dia and material
  • Wiring: - Cable: screw-type terminals (use with supplied ferrules for stands) or soldering
  • Nom. wire size/contact: 2.5 mm² / 14 AWG
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8mm x 0.5mm) or soldering
  • Materials Housing: PA 6 30%
  • GR Insert (FC part): PBTP 20%
  • GR Contacts: ZnAI4Cu1 / CuSn8 4 µm / 20 µm
  • Ag plated Securing lever: ZnAI4Cu1, CuNi plated
  • Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

Coding:

With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit. Mating connectors (combination) are identified by mechanical keyways and by color: A-type (POWER INLET) B-type (POWER OUTLET) Cable connector: blue grey, with blue bushing Chassis connector: blue grey NAC3FCA Cable connector with quick lock. Blue. Power IN System.

price per unit   (Order No. ah-NAC3FCA) EUR 9,80 excl. VAT: € 8.24 / $ 8.89


Neutrik NAC3FCB - Powercon, grey

Neutrik connectors, Neutrik NAC3FCB - Powercon, grey

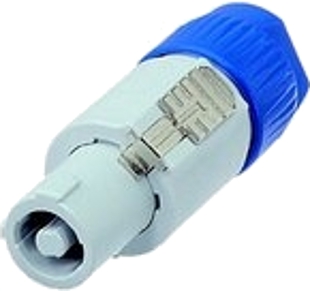

Neutrik NAC3FCB PowerCon Locking 3 pole Mains Connector
  • Fast and easy locking system
  • High current capacity (20 A rated)
  • Extremely robust and reliable
  • Meets all prevailing safety standards
  • UL recognized, VDE certified and SEV approved
  • Very good cable handling and protection

Technical Data

  • Electrical Rated current: 20 A rms
  • Wire size 2.5 mm²
  • Rated voltage: 250 V ac
  • Dielectric strength: 4240 V pp
  • Contact resistance: = 3 m after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M
  • Creepage distance: according to IEC 664-1

Safety ground:

  • Premating: Mechanical
  • Retention method: Quicklock with securing lever
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 5 - 15 mm
  • Cable retention force: = 220 N, depending on cable dia and material
  • Wiring: - Cable: screw-type terminals (use with supplied ferrules for stands) or soldering
  • Nom. wire size/contact: 2.5 mm² / 14 AWG
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8mm x 0.5mm) or soldering Materials
  • Housing: PA 6 30%
  • GR Insert (FC part): PBTP 20%
  • GR Contacts: ZnAI4Cu1 / CuSn8 4 µm / 20 µm Ag plated
  • Securing lever: ZnAI4Cu1, CuNi plated
  • Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

Coding

With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit. Mating connectors (combination) are identified by mechanical keyways and by color: A-type (POWER INLET) B-type (POWER OUTLET) Cable connector: blue grey, with blue bushing Chassis connector: blue grey NAC3FCB Cable connector with quick lock. Gray. Power OUT Sytem.

price per unit   (Order No. ah-NAC3FCB) EUR 9,80 excl. VAT: € 8.24 / $ 8.89


Neutrik NC3FDL1 - XLR socket female universal

Neutrik NC3FDL-1 DL Series
  • Unified metal shell for male and female.
  • RF-protected.
  • Solder cups, or PCB terminations (4 and 5 pole only).

Technical Data

  • Number of contacts: 3 - 7 (except MP: 3-6)
  • Rated voltage: 250 V ac (3 - 6 pole 125 V ac (7 pole)
  • Contact resistance: = 5 m
  • Insulation resistance - initial:>2 G - after damp heat test:>1 G (IEC 68-2-30)
  • Dielectric strength: 1500 V dc
  • Mechanical Lifetime:>1000 mating cycles Insertion / withdrawal force: = 20 N
  • Retention method (Female versions only): - standard: latch lock - "-0" version: retention spring
  • Separating force: = 20 N
  • Rated current: 3 pole: 16 I [A], 2.5/14 mm2/AWG, = 4 C 4 pole: 10 I [A], 1.5/16 mm2/AWG, = 7 C 5 and 6 pole: 7.5 I [A], 1.0/18 mm2/AWG, = 7 C 7 pole: 5 I [A], 1.0/18 mm2/AWG, = 9 C I ... Rated current per contact C ... Capacitance between contacts
  • Material, shell: ZnAI4Cu1, gal Ni or black Cr plating
  • Material, insert: PA 6.6 30% GR (glass reinforced)
  • Material, contacts: - female (4-7pole) & male: CuZn39Pb3
  • Material, contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni Latch lock & spring: CK 67 steel, treated
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability (except A/B series): UL 94HB
  • Solderability: complies with IEC 68-2-20
  • Compatibility: Switchcraft® DxM, DxF Cannon XLRsys1, XLRsys2
  • Dimensionally with D series PCB versions (4 & 5 pole): horizontal
  • PCB mounting, fastening by chassis mounting holes with M3 threads or by self tapping PT® screws with thread 2.9x1.06 (tri-rondular) direct to PCB NC3FD-L-1 3 pole.
  • Female receptacle unified -`D`- housing.
  • Cups for wire soldering.

price per unit   (Order No. ah-NC3FDL1) EUR 6,20 excl. VAT: € 5.21 / $ 5.63

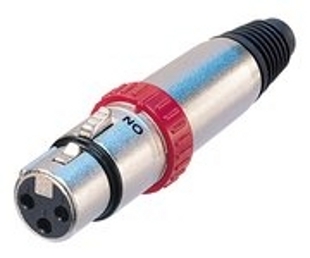

Neutrik NC3FXS - XLR plug female, with On/Off-switch

Neutrik connectors, Neutrik NC3FXS - XLR plug female, with On/Off-switch
Neutrik NC3FXS FXS Type FX connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Technical Data:

  • Number of contacts: 3
  • Contact resistance: = 3 m
  • Insulation resistance - initial:>2 G - after damp heat test:>1 G
  • Dielectric strength: 1500 V dc
  • Mechanical Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm
  • Materials Shell: ZnAI4Cu1, gal Ni or black Cr over Cu plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Material, contacts: - female (3 pole): CuSn6 - female (4-7pole) & male: CuZn39Pb3
  • Material, contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Material, latch lock: St3K32 (latch) / CK 67 (spring)
  • Material, strain-relief clamp: POM
  • Material, antikink bushing: PUR
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Compatibility:: complies with IEC 68-2-20
  • Solderability: NC3FXS Female with noiseless ON-OFF rotary switch (shorts no. 2 and 3)

price per unit   (Order No. ah-NC3FXS) EUR 17,50 excl. VAT: € 14.71 / $ 15.88

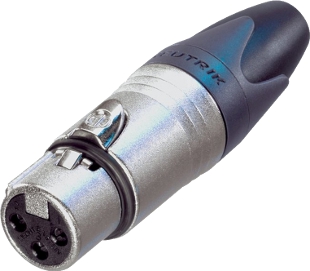

Neutrik NC3FXX - 3 pole cable connector, female



3 pole cable connector, female. Nickel housing and silver contacts.

Technical Data:
  • Number of contacts: 3
  • Contact resistance:<3 m Ohm
  • Insulation resistance - initial:>2 G Ohm - after damp heat test:>1 G Ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 16 A AWG: 2.5 mm²/14 AWG
  • Capacitance between contacts:<4 pF
  • Mechanical Lifetime: >1000 cycles
  • Insertion / withdrawal force:<20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm
  • Material, shell: Zinc diecast ZnAl4Cu1, gal Ni over Cu plating
  • Material, insert: Polyamide PA 6.6 30% GR (glass reinforced)
  • Material, contacts: Bronze CuSn6
  • Material, contact surface: gal 2 µm Ag silver
  • Material, latch lock (female): St3K32
  • Material, strain-relief clamp: POM
  • Material, antikink bushing: PA + PU
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
  • Compatibility:: IEC 61076-2-103 standard & Switchcraft® QG & Cannon XLR

price per unit   (Order No. ah-NC3FXX) EUR 5,66 excl. VAT: € 4.76 / $ 5.14

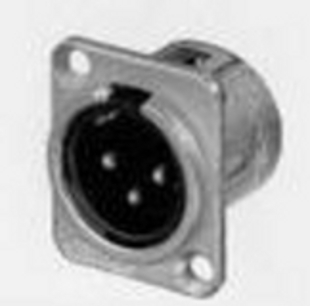

Neutrik NC3MDL1 - universal XLR socket, male

Neutrik NC3MDL-1

DL Series, unified metal shell for male and female. RF-protected. Solder cups, or PCB terminations (4 and 5 pole only).

Technical Data:

Electrical:

  • Number of contacts: 3 - 7 (except MP: 3-6)
  • Rated voltage: 250 V ac (3 - 6 pole
  • 125 V ac (7 pole)
  • Contact resistance: = 5 m
  • Insulation resistance - initial:>2 G
  • - after damp heat test:>1 G (IEC 68-2-30)
  • Dielectric strength: 1500 V dc

Mechanical

  • Lifetime:>1000 mating cycles
  • Insertion / withdrawal force: = 20 N
  • Retention method (Female versions only): - standard: latch lock
  • - "-0" version: retention spring
  • Separating force: = 20 N
  • Rated current:
  • 3 pole: 16 I [A], 2.5/14 mm2/AWG, = 4 C
  • 4 pole: 10 I [A], 1.5/16 mm2/AWG, = 7 C
  • 5 and 6 pole: 7.5 I [A], 1.0/18 mm2/AWG, = 7 C
  • 7 pole: 5 I [A], 1.0/18 mm2/AWG, = 9 C

  • I ... Rated current per contact
  • C ... Capacitance between contacts

Materials

  • Shell: ZnAI4Cu1, gal Ni or black Cr plating
  • Insert: PA 6.6 30% GR (glass reinforced)
  • Contacts: - female (4-7pole) & male: CuZn39Pb3
  • Contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Latch lock & spring: CK 67 steel, treated

Environmental

  • Temperature range: -30° C to + 80° C
  • Flammability (except A/B series): UL 94HB
  • Solderability: complies with IEC 68-2-20

Compatibility:

  • Switchcraft® DxM, DxF Cannon XLRsys1, XLRsys2 Dimensionally with D series
  • PCB versions (4 & 5 pole): horizontal PCB mounting, fastening by chassis mounting holes with M3 threads or by self tapping PT® screws with thread 2.9x1.06 (tri-rondular) direct to PCB

NC3MD-L-1

  • 3 pole
  • Male receptacle unified -`D`- housing
  • Cups for wire soldering

price per unit   (Order No. ah-NC3MDL1) EUR 5,70 excl. VAT: € 4.79 / $ 5.17

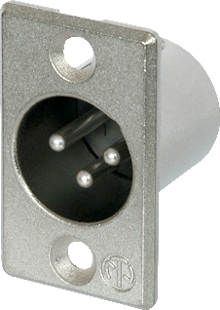

Neutrik NC3MP - XLR socket male, standard

Neutrik connectors, Neutrik NC3MP - XLR socket male, standard
Neutrik NC3MP P Series Smallest available hard wiring large solder cups.

Technical Data

  • Number of contacts: 3 - 7 (except MP: 3-6)
  • Rated voltage: 250 V ac (3 - 6 pole) 125 V ac (7 pole)
  • Contact resistance: = 5 m
  • Insulation resistance - initial:>2 G - after damp heat test:>1 G -IEC 68-2-30)
  • Dielectric strength: 1500 V dc
  • Rated current: 3 pole: 16 I [A], 2.5/14 mm2/AWG, = 4 C 4 pole: 10 I [A], 1.5/16 mm2/AWG, = 7 C 5 and 6 pole: 7.5 I [A], 1.0/18 mm2/AWG, = 7 C 7 pole: 5 I [A], 1.0/18 mm2/AWG, = 9 C I ...
  • Rated current per contact C ... Capacitance between contacts
  • Mechanical Lifetime:>1000 mating cycles
  • Insertion / withdrawal force: = 20 N
  • Retention method (Female versions only): - standard: latch lock - "-0" version: retention spring
  • Separating force: = 20 N
  • Material, shell: ZnAI4Cu1, gal Ni or black Cr plating Insert: PA 6.6 30% GR (glass reinforced)
  • Material, contacts: - female (3 pole): CuSn6 - female (4-7pole) & male: CuZn39Pb3
  • Material, contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Material, latch lock & spring: CK 67 steel, treated
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability (except A/B series): UL 94HB
  • Solderability: complies with IEC 68-2-20
  • Compatibility: Switchcraft® DxM, DxF Cannon XLRsys1, XLRsys2 Dimensionally with D series PCB versions (4 & 5 pole): horizontal PCB mounting, fastening by chassis mounting holes with M3 threads or by self tapping PT® screws with thread 2.9x1.06 (tri-rondular) direct to PCB NC3MP 3 pole. Male receptacle compatible with Switchcraft® D3M, ITT Cannon XLR 3-32

price per unit   (Order No. ah-NC3MP) EUR 5,00 excl. VAT: € 4.20 / $ 4.54


Neutrik NC3MXX - 3 pole cable connector, male

3 pole cable connector, male. Nickel housing and silver contacts.

Technical Data

  • Number of contacts: 3 Contact resistance:<3 m Ohm
  • Insulation resistance - initial:>2 G Ohm - after damp heat test:>1 G Ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 16 A AWG: 2.5 mm²/14 AWG
  • Capacitance between contacts:<4 pF
  • Mechanical Lifetime: >1000 cycles Insertion / withdrawal force:<20 N Cable O.D. range: 3.5 mm - 8.0 mm
  • Material, shell: Zinc diecast ZnAl4Cu1, gal Ni over Cu plating
  • Material, insert: Polyamide PA 6.6 30% GR (glass reinforced)
  • Material, contacts: Bronze CuSn6
  • Material, contact surface: gal 2 µm Ag silver
  • Material, strain-relief clamp: POM
  • Material, antikink bushing: PA + PU
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
  • Compatibility: IEC 61076-2-103 standard & Switchcraft® QG & Cannon XLR

price per unit   (Order No. ah-NC3MXX) EUR 4,78 excl. VAT: € 4.02 / $ 4.34

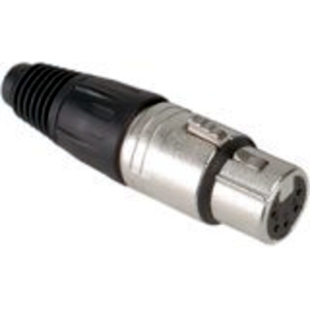

Neutrik NC5FX - XLR plug 5-pin, female

Neutrik connectors, Neutrik NC5FX - XLR plug 5-pin, female
Neutrik NC5FX X Series The worldwide accepted standard. Rugged diecast shell, compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief.

Technical Data

  • Number of contacts: 3 - 7
  • Contact resistance: = 3 m
  • Insulation resistance - initial:>2 G - after damp heat test:>1 G
  • Dielectric strength: 1500 V dc Rated current: 3 pole: 16 I [A], 2.5/14 mm²/AWG, = 4 C 4 pole: 10 I [A], 1.5/16 mm²/AWG, = 7 C 5 and 6 pole: 7.5 I [A], 1.0/18 mm²/AWG, = 7 C 7 pole: 5 I [A], 1.0/18 mm²/AWG, = 9 C I ... Rated current per contact C ... Capacitance between contacts
  • Mechanical Lifetime: >1000 cycles
  • Insertion / withdrawal force: = 20 N
  • Cable O.D. range: 3.5 mm - 8.0 mm (except RC Series)
  • Material, shell: ZnAI4Cu1, gal Ni or black Cr over Cu plating
  • Material, insert: PA 6.6 30% GR (glass reinforced)
  • Material, contacts: - female (3 pole): CuSn6 - female (4-7pole) & male: CuZn39Pb3
  • Material, contact surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
  • Material, latch lock: St3K32 (latch) / CK 67 (spring)
  • Material, strain-relief clamp: POM
  • Material, antikink bushing: PUR
  • Environmental Temperature range: -30° C to + 80° C
  • Flammability: UL 94HB
  • Solderability: complies with IEC 68-2-20
  • Compatibility / Remarks Compatibility: IEC tentative standard Switchcraft® QG (except 6 pole) & Cannon XLR Special 6-pole version, compatible to Switchcraft® QG (not according to IEC): - NC6FSX [-B] / [-BAG] - NC6MSX [-B] / [-BAG] Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix "-D" NC5FX 5 pole. Cable connector, female, rear insert. Supercompact and robust, ground lug, excellent cable protection, no tools required. Nickel housing and silver contacts.

price per unit   (Order No. ah-NC5FX) EUR 12,70 excl. VAT: € 10.67 / $ 11.53


Neutrik NCJ6FIS - Combo socket stereo XLR/Jack

Neutrik NCJ6FIS Combo Series Combined XLR receptacle and phone jack. New attractive `front end` design (30% less protruding from panel than original). Saves racks space by combining 2 connectors in one housing.
  • Horizontal or vertical PCB mounting or hard wire soldering
  • Full normalled
  • Stereo or mono version
  • Very low conducter capacitance, therefore suitable for Digital Audio
  • Fully compatible to the predecessor Combo
  • Fastening: Self-tapping PT® screws with thread 2.9x1.06 and tri-rondular configuration

Technical Data

  • Electrical Contact resistance: XLR:<10 m Jack:<20 m
  • Rated current: 7.5 A
  • Rated voltage: 125 V ac
  • Insulation resistance:>500 M after damp heat test
  • Dielectric strength: 1500 V dc
  • Capacitance:<2 pF
  • Mechanical Engagement / separation force: XLR:<25 N />15 N Jack:<25 N / 15 - 25 N
  • Solderability: complies with IEC 68-2-20
  • Applicable Standard: EIA RS-453 for jack
  • Material, shell: Polyamid, PA 6.6 30% GR
  • Material, contacts of Jack and XLR: CuSn6
  • Material, contact plating: XLR and switch contacts: galv. Au Jack and Ground: galv. Ag
  • Temperature range: -20°C to +65°C
  • Compatibility / Remarks Compatibility: NCJ6FI-S XLR-female receptacle with 1/4 Inch stereo jack for PCB mounting. Front panel cut out compatible with K-Series, XLB- and PQG-connectors, fastening with self tapping screws. With solder cups for wire termination

price per unit   (Order No. ah-NCJ6FIS) EUR 4,22 excl. VAT: € 3.55 / $ 3.83

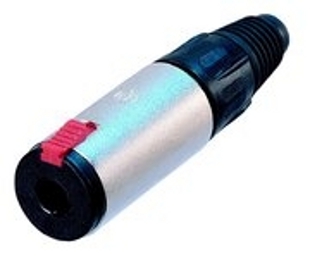

Neutrik NJ3FC6 - 6,3 mm Jack cable connector

Neutrik connectors, Neutrik NJ3FC6 - 6,3 mm Jack cable connector
Neutrik NJ3FC6 Locking 1/4 Inch Cable Jacks
  • Another unique Neutrik innovation: Securely locking jack for cable assemblies.
  • Mates with all mono or stereo plugs specified to EIA RS 453.
  • Professional locking cable-jack for secure in-line connections.
  • Excellent cable protection.

Technical Data:

  • Contact resistance - initial:<6 m - after life test: <15 m
  • Insulation resistance - initial: >2 G - after damp heat test: = 1 G
  • Dielectric strenght: 1.5 kV dc
  • Rated current: 10 A
  • Mechanical Life: >10000 cycles
  • Insertion / withdrawal force:<19 N /<22 N
  • Locking force:>80 N
  • Wire size: 1 mm² / 18 AWG max. for soldering tag
  • Cable O.D. (FC 6 only): 3.5 mm - 8.0 mm
  • Solderability: compiles with IEC 68-2-20
  • Material, shell / handle: ZnAI4Cu1 nickel plated or black coated FP6P: PA 6.6 30%
  • Material, GR Insulation: PA 6.6 30% GR
  • Material, contacts: CuBe2 / CuZn37 (ground) 2 µm Ag plated
  • Material, chuck: POM
  • Material, bushing: PA 6.6 15% GR + PUR
  • Temperature range: -20°C to +65°C NJ3FC6

price per unit   (Order No. ah-NJ3FC6) EUR 10,50 excl. VAT: € 8.82 / $ 9.53

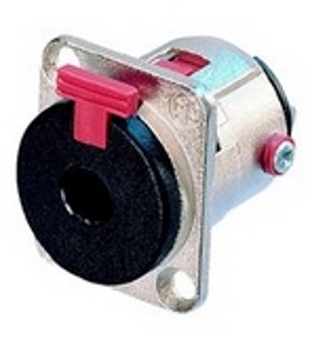

Neutrik NJ3FP6C - 6,3 mm Jack socket stereo

Neutrik connectors, Neutrik NJ3FP6C - 6,3 mm Jack socket stereo
Neutrik NJ3FP6C Locking 1/4 Inch Chassis Jacks
  • Mates with all mono or stereo plugs specified to EIA RS 453 dimensionally compatible with D-series.

Technical Data:

  • Contact resistance - initial:<6 m - after life test: <15 m Insulation resistance - initial: >2 G - after damp heat test: = 1 G
  • Dielectric strenght: 1.5 kV dc
  • Rated current: 10 A
  • Mechanical Life: >10000 cycles
  • Insertion / withdrawal force:<19 N /<22 N
  • Locking force:>80 N Wire size: 1 mm² / 18 AWG max. for soldering tag
  • Cable O.D. (FC 6 only): 3.5 mm - 8.0 mm
  • Solderability: compiles with IEC 68-2-20
  • Material, shell / handle: ZnAI4Cu1 nickel plated or black coated FP6P: PA 6.6 30%
  • GR Insulation: PA 6.6 30% GR
  • Contacts: CuBe2 / CuZn37 (ground) 2 µm Ag plated
  • Chuck: POM Bushing: PA 6.6 15% GR + PUR
  • Temperature range: -20°C to +65°C
  • Remarks / Applicable Standard Compatibility: EIA RS 453 NJ3FP6C Locking 1/4 Inch phone jack. Same shell as D-Series.

price per unit   (Order No. ah-NJ3FP6C) EUR 8,60 excl. VAT: € 7.23 / $ 7.81

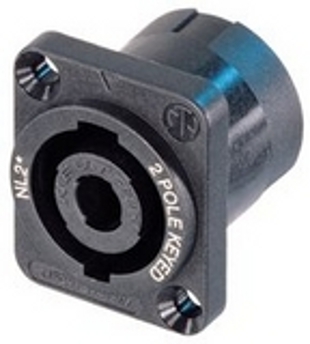

Neutrik - NL2MP Speakon Socket

Neutrik connectors, Neutrik - NL2MP Speakon Socket
Neutrik NL2MP Chassis Connectors
  • Extremely reliable and robust.
  • 2,4 and 8 pole versions with `Quick Lock` system.
  • The chassis types are fast and easy to wire with flat quick-connect terminations (e.g. Faston®).
  • Excellent price / performance ratio.
  • Small flange.
  • Does not intermate with the 4-pole cable connector.

Technical Data:

Electrical

  • Rated current/contact: 30 A rms continous, 40 A rms 1 min.
  • Dielectric strength: 4kV peak
  • Rated voltage: 250 V ac
  • Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M
  • Inrush/outrush current capability (12 V source): 300/30 A/200 ms
  • Creepage distance: according to IEC 664-1
  • Mechanical Retention method: Quicklock with latch
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 6 - 10 mm (2 pole) 5 - 15 mm (4 pole) 8 - 20 mm (8 pole)
  • Cable retention force: = 220 N Subject to cable die and material

Wiring:

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

Materials

  • Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8, 4 µm Ag plated
  • Securing element: ZnAI4Cu1, CuNi plated
  • Spring element: Neoprene ring
  • Housing: PA 6 30% GR Insert (FC part): PBTP 20%
  • GR Bushing: PA 6 15% GR Chuck: POM
  • Temperature range: -30°C to +80°C

Wiring:

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

price per unit   (Order No. ah-NL2MP) EUR 3,20 excl. VAT: € 2.69 / $ 2.90

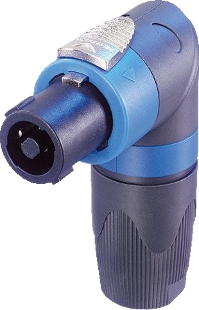

Neutrik NL4FRX - R/A Speakon X-line 4 Pole

4 pole right-angle cable connector with chuck and bushing.

price per unit   (Order No. ah-NL4FRX) EUR 10,10 excl. VAT: € 8.49 / $ 9.17

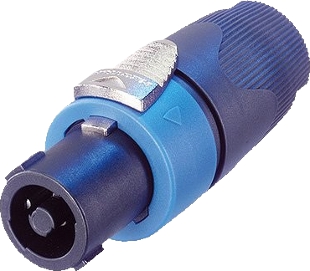

Neutrik NL4FX - Speakon X-Line 4 Pole

Neutrik Speakon 4 pin connector 50 ampere RMS.

price per unit   (Order No. ah-NL4FX) - not available

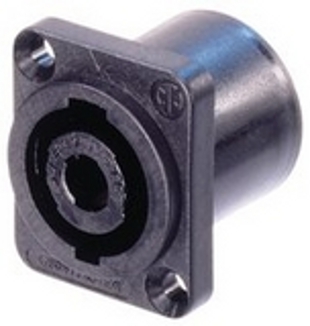

Neutrik - NL4MP Speakon Socket

Neutrik connectors, Neutrik - NL4MP Speakon Socket
Neutrik NL4MP Chassis Connectors
  • Extremely reliable and robust.
  • 2,4 and 8 pole versions with `Quick Lock` system.
  • The chassis types are fast and easy to wire with flat quick-connect terminations (e.g. Faston®).
  • Excellent price / performance ratio.
  • Small flange compatible with `D`-Series connectors.
  • Air tight.

Technical Data:

  • Rated current/contact: 30 A rms continous, 40 A rms 1 min.
  • Dielectric strength: 4kV peak
  • Rated voltage: 250 V ac
  • Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M
  • Inrush/outrush current capability (12 V source): 300/30 A/200 ms
  • Creepage distance: according to IEC 664-1
  • Mechanical Retention method: Quicklock with latch
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 6 - 10 mm (2 pole) 5 - 15 mm (4 pole) 8 - 20 mm (8 pole)
  • Cable retention force: = 220 N Subject to cable die and material

Wiring:

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

Materials:

  • Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8, 4 µm Ag plated
  • Securing element: ZnAI4Cu1, CuNi plated
  • Spring element: Neoprene ring
  • Housing: PA 6 30% GR Insert (FC part): PBTP 20%
  • GR Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

Wiring:

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

price per unit   (Order No. ah-NL4MP) - not available

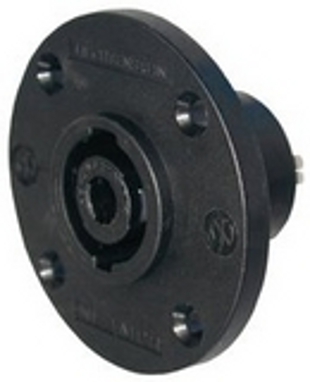

Neutrik - NL4MPR Speakon Socket, round

Neutrik connectors, Neutrik - NL4MPR Speakon Socket, round
Neutrik NL4MPR Chassis Connectors
  • Extremely reliable and robust.
  • 2,4 and 8 pole versions with `Quick Lock` system.
  • The chassis types are fast and easy to wire with flat quick-connect terminations (e.g. Faston®).
  • Excellent price / performance ratio.
  • Compatible with Cannon `EP-Series`.
  • Air tight.

Technical Data

  • Rated current/contact: 30 A rms continous, 40 A rms 1 min.
  • Dielectric strength: 4kV peak
  • Rated voltage: 250 V ac
  • Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M Inrush/outrush current capability (12 V source): 300/30 A/200 ms
  • Creepage distance: according to IEC 664-1
  • Mechanical Retention method: Quicklock with latch Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 6 - 10 mm (2 pole) 5 - 15 mm (4 pole) 8 - 20 mm (8 pole)
  • Cable retention force: = 220 N Subject to cable die and material

Wiring

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

Materials

  • Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8, 4 µm Ag plated
  • Securing element: ZnAI4Cu1, CuNi plated
  • Spring element: Neoprene ring Housing: PA 6 30% GR Insert (FC part): PBTP 20%
  • GR Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

price per unit   (Order No. ah-NL4MPR) EUR 4,50 excl. VAT: € 3.78 / $ 4.08

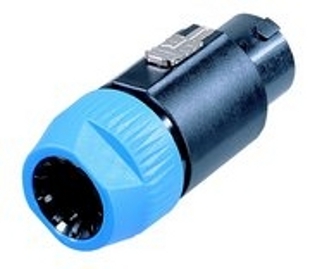

Neutrik - NL8FC Speakon Connector

Neutrik connectors, Neutrik - NL8FC Speakon Connector
Neutrik NL8FC Cable Connectors
  • Extremely reliable and robust.
  • Neutrik unique chuck type strain relief.
  • Cable connectors have solid contacts with screw-type terminals, a special stranded wire protection and are solderable too.
  • Excellent price / performance ratio.
  • Cable sleeve for cables 10 - 21 mm diameter.
  • 30 A continuous per contact.

Technical Data

  • Rated current/contact: 30 A rms continous, 40 A rms 1 min.
  • Dielectric strength: 4kV peak
  • Rated voltage: 250 V ac
  • Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M
  • Inrush/outrush current capability (12 V source): 300/30 A/200 ms
  • Creepage distance: according to IEC 664-1
  • Mechanical Retention method: Quicklock with latch
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 6 - 10 mm (2 pole) 5 - 15 mm (4 pole) 8 - 20 mm (8 pole)
  • Cable retention force: = 220 N Subject to cable die and material

Wiring

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

Materials

  • CuZn39Pb3 / ZnAI4Cu1 / CuSn8, 4 µm Ag plated
  • Securing element: ZnAI4Cu1, CuNi plated
  • Spring element: Neoprene ring
  • Housing: PA 6 30%
  • GR Insert (FC part): PBTP 20%
  • GR Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

price per unit   (Order No. ah-NL8FC) EUR 19,68 excl. VAT: € 16.54 / $ 17.86

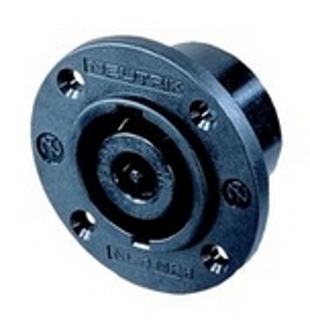

Neutrik NL8MPR - Speakon 8 pin male panel

Neutrik connectors, Neutrik NL8MPR - Speakon 8 pin male panel
Neutrik NL8MPR Chassis Connectors
  • Extremely reliable and robust.
  • 2,4 and 8 pole versions with `Quick Lock` system.
  • The chassis types are fast and easy to wire with flat quick-connect terminations (e.g. Faston®).
  • Excellent price / performance ratio.
  • Compatible with Cannon `EP-Series`.
  • Air tight.

Technical Data

  • Rated current/contact: 30 A rms continous, 40 A rms 1 min.
  • Dielectric strength: 4kV peak
  • Rated voltage: 250 V ac
  • Contact resistance: = 3 m (= 10 m for NL4MD-H) after 5000 insertion-withdrawal operations
  • Insulation resistance - initial:>2 G - after damp heat test:>500 M Inrush/outrush current capability (12 V source): 300/30 A/200 ms
  • Creepage distance: according to IEC 664-1
  • Mechanical Retention method: Quicklock with latch Cable anchoring: NEUTRIK® chuck principle
  • Cable O.D. range: 6 - 10 mm (2 pole) 5 - 15 mm (4 pole) 8 - 20 mm (8 pole)
  • Cable retention force: = 220 N Subject to cable die and material

Wiring

  • Cable: screw-type terminals (crush ferrules provided for use with stranded cable) on 8 pole version or soldering (12 AWG stranded)
  • Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8 mm x 0.5 mm) or PCB-version with pins 1.6 mm x 0.5 mm (FASTON is a trademark of AMP Inc.)

Materials

  • Contacts: CuZn39Pb3 / ZnAI4Cu1 / CuSn8, 4 µm Ag plated
  • Securing element: ZnAI4Cu1, CuNi plated
  • Spring element: Neoprene ring Housing: PA 6 30% GR Insert (FC part): PBTP 20%
  • GR Bushing: PA 6 15%
  • GR Chuck: POM
  • Temperature range: -30°C to +80°C

price per unit   (Order No. ah-NL8MPR) EUR 12,60 excl. VAT: € 10.59 / $ 11.44

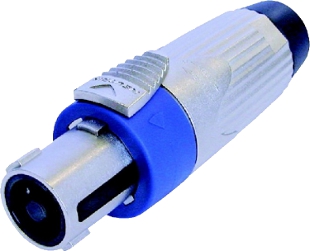

Neutrik NLT4FX - 4-pin cable connector in nickel housing, female

The new generation of Speakon STX Series 4-pin cable and chassis connectors offers the same proven reliability as the standard-setting Speakon system. Rugged, die-cast metal housing and built-in gaskets make the STX Series products ideal for the most demanding tasks, including outdoor and touring applications. 4-pin cable connector female in nickel housing, with chuck and bushing; also available in black chrome (NLT4FX-BAG)

Specifications:

  • Electrical Rated current per contact: 40 A rms continuous, 50 A audio signal, duty cycle: 50 %
  • Rated insulation voltage: 250 V AC
  • Contact resistance:<2m
  • Insulation resistance:>1 G
  • Dielectric strength: 4 kV peak

price per unit   (Order No. ah-NLT4FX) EUR 16,10 excl. VAT: € 13.53 / $ 14.61

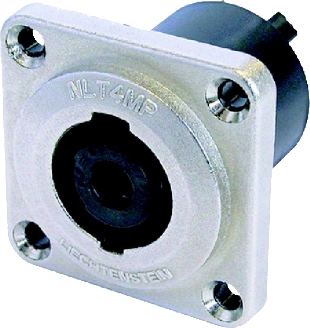

Neutrik NLT4MP - 4-pin chassis connector in nickel housing, male

The new generation of Speakon STX Series 4-pin cable and chassis connectors offers the same proven reliability as the standard-setting Speakon system. Rugged, die-cast metal housing and built-in gaskets make the STX Series products ideal for the most demanding tasks, including outdoor and touring applications. 4-pin chassis connector male in nickel housing; also available in black chrome (NLT4MP-BAG).

Specifications:

  • Electrical Rated current per contact: 40 A rms continuous, 50 A audio signal, duty cycle: 50 %
  • Rated insulation voltage: 250 V AC
  • Contact resistance:<2m
  • Insulation resistance:>1 G
  • Dielectric strength: 4 kV peak

price per unit   (Order No. ah-NLT4MP) EUR 9,60 excl. VAT: € 8.07 / $ 8.71

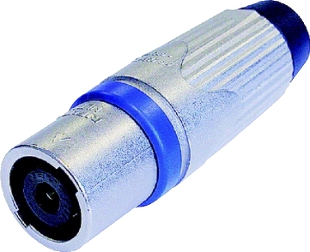

Neutrik NLT4MX - 4-pin cable connector in nickel housing, male

The new generation of Speakon STX Series 4-pin cable and chassis connectors offers the same proven reliability as the standard-setting Speakon system. Rugged, die-cast metal housing and built-in gaskets make the STX Series products ideal for the most demanding tasks, including outdoor and touring applications. 4-pin cable connector male in nickel housing, with chuck and bushing; also available in black chrome (NLT4FX-BAG)

Specifications:

  • Electrical Rated current per contact: 40 A rms continuous, 50 A audio signal, duty cycle: 50 %
  • Rated insulation voltage: 250 V AC
  • Contact resistance:<2m
  • Insulation resistance:>1 G
  • Dielectric strength: 4 kV peak

price per unit   (Order No. ah-NLT4MX) EUR 15,60 excl. VAT: € 13.11 / $ 14.16

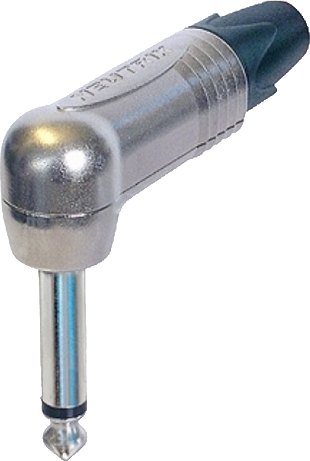

Neutrik NP2RX - Jack plug 2 pole, angled

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

1/4" professional right-angle phone plug, 2 pole, nickel contacts, nickel shell

Features & Benefits

  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Improved chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

price per unit   (Order No. ah-NP2RX) EUR 5,34 excl. VAT: € 4.49 / $ 4.85

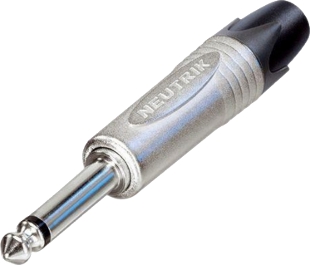

Neutrik NP2X - Jack plug 2 pole

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

1/4" professional phone plug, 2 pole, nickel contacts, nickel shell

Features & Benefits

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Improved chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

price per unit   (Order No. ah-NP2X) EUR 4,82 excl. VAT: € 4.05 / $ 4.37

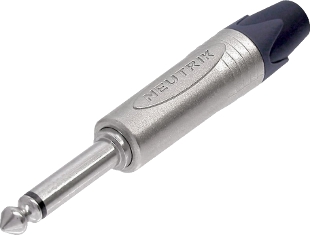

Neutrik NP2XBAG - Jack plug 6.3 mm, mono

Neutrik Jack Plug 6.3 mm, mono

price per unit   (Order No. ah-NP2XBAG) EUR 4,88 excl. VAT: € 4.10 / $ 4.43

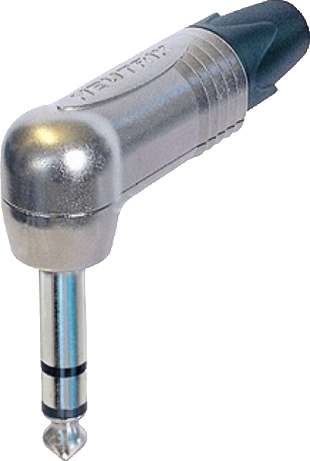

Neutrik NP3RX - Jack plug 3 pole, angled

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

3 pole right-angle 1/4" professional phone plug, nickel contacts, nickel shell

Features & Benefits

  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Improved chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

price per unit   (Order No. ah-NP3RX) EUR 9,16 excl. VAT: € 7.70 / $ 8.31

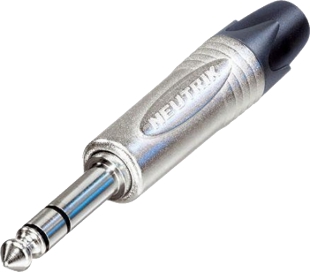

Neutrik NP3X - Jack plug 3 pole

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

3 pole, 1/4" professional phone plug, nickel contacts, nickel shell

Features & Benefits

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Improved chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

price per unit   (Order No. ah-NP3X) EUR 6,74 excl. VAT: € 5.66 / $ 6.12
