Cabinet flanges


Adam Hall Hardware, Artilelnummer: M19580B - Cabinet flange, black

  • Attachable to speakers
  • Slip-on adapter for speaker stands with tube diameter 36 mm
  • Flange 175 x 110 mm with two slots 35 x 10 mm
  • Weight: 0.72 kg
  • Black

PDF data sheet Replacement list

price per piece   (Order No ah-M19580B) EUR 23,00 excl. VAT: € 19.33 / $ 17.26



Adam Hall Hardware, Product number: M19654B - Flange adapter, black

  • Can be inserted or screwed into speaker enclosure
  • For stands with tube diameter of 36 mm
  • Special plastic (polyamide) flange, diameter 105 mm, depth 60.5 mm
  • With four 6.5 mm diameter holes
  • Weight: 0.06 kg
  • Black

price per piece   (Order No ah-M19654B) EUR 3,91 excl. VAT: € 3.29 / $ 2.93



Adam Hall Hardware, Product number: M19656B - Cabinet flange, black

  • Can be inserted or attached to speakers
  • For stands with tube diameter 36 mm
  • Cast-iron flange, diameter 105 mm, depth 75 mm
  • With four 6.5 mm diameter holes
  • Weight: 0.3 kg

price per piece   (Order No ah-M19656B) EUR 10,60 excl. VAT: € 8.91 / $ 7.95



Adam Hall Hardware, Product number: M19665B - Flange adapter for 21420, black

  • Suitable for 21420 or stands with tubing diameter of 25 mm
  • Designed to be inserted and screwed onto speaker enclosures
  • Plastic-coated steel flange, diameter 105 mm, depth 78 mm
  • With four 6.5 mm diameter holes
  • Weight: 0.4 kg

price per piece   (Order No ah-M19665B) EUR 21,00 excl. VAT: € 17.65 / $ 15.76



Adam Hall Hardware, Product number: M21441B - Flange Adapter, black

Enlarge
  • Suitable for stands with tubing diameter of 35 mm
  • Attaches with locking screw
  • Patented expanding mandrel for definable yet firm and free of play cabinet fixation
  • Low resonance connection between cabinet and stand by plastic expansion jaws
  • Steel
  • Weigth: 0,7 kg
  • Heigth: 270 mm

price per piece   (Order No ah-M21441B) EUR 49,50 excl. VAT: € 41.60 / $ 37.14



Adam Hall Hardware, Product number: SM700 - Top Hat, black

  • Top hat 35 mm steel internal
  • Steel to fit SPS 56B stand
  • Weight: 0.400 kg
  • Height: 105 mm

price per piece   (Order No ah-SM700) EUR 7,10 excl. VAT: € 5.97 / $ 5.33

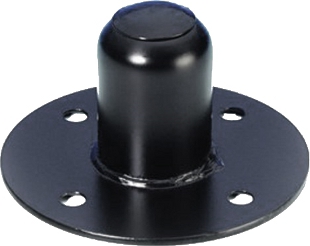

Adam Hall Hardware, Product number: SM701 - Top Hat, black

Enlarge Enlarge
  • Top hat 35 mm steel internal, reduced height, steel
  • As SM 700 but 58 mm total height
  • Weight: 0.300 kg

price per piece   (Order No ah-SM701) EUR 8,70 excl. VAT: € 7.31 / $ 6.53

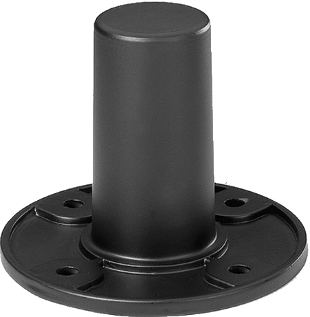

Adam Hall Hardware, Product number: SM702 - Aluminium Top Hat, black

Enlarge Enlarge
  • Cast aluminium speaker flange, black powder-coated
  • To fit all 35mm speaker stands
  • Weight: 0.15 kg
  • Heigth: 80 mm
  • Weigth: 0,145 kg

price per piece   (Order No ah-SM702) EUR 6,80 excl. VAT: € 5.71 / $ 5.10

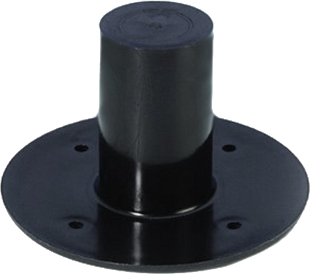

Adam Hall Hardware, Product number: SM705 - Plastic Top Hat, black

Enlarge Enlarge
  • Internal mount Nylon top hat for 35 mm poles
  • To suit SPS 54B/56B/59B
  • Mounting
  • Cut out: 43 mm
  • Internal depth: 67 mm

price per piece   (Order No ah-SM705) EUR 6,50 excl. VAT: € 5.46 / $ 4.88

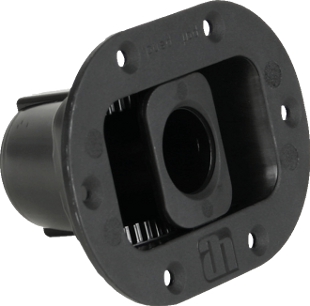

Adam Hall Hardware, Product number: SM707 - Top Hat with adjustable tilt angle, black

Enlarge Enlarge Enlarge Enlarge Enlarge
  • Adjustable Angle Top Hat for Loudspeaker Boxes
  • Vertical angle can be adjusted in 4º increments to +/- 18º
  • Fits SPS56B and most other standard speaker stands
  • Internal Ø 36mm
  • Black Polyamide
  • Patent pending
  • Weigth: 0,27 kg
  • Black

PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)

price per piece   (Order No ah-SM707) EUR 18,20 excl. VAT: € 15.29 / $ 13.66



Adam Hall Hardware, Product number: SM720 - Flange steel plate with M 20 inside thread, black

Enlarge Enlarge
  • Steel plate with M20 inside thread
  • May be used with distance rod SPS822
  • Diameter, plate: 105 mm
  • Weigth: 0,27 kg
  • Black

price per piece   (Order No ah-SM720) EUR 8,10 excl. VAT: € 6.81 / $ 6.08



Adam Hall Hardware, Product number: SPS57 - Plastic mounting bracket for standard speakers, black

Enlarge
  • Mounting bracket for standard speaker stands
  • Requires no space inside speaker box
  • Black plastic
  • External mounting top hat, to fit all 35mm speaker stands
  • Weight: 0.26 kg

price per piece   (Order No ah-SPS57) EUR 7,70 excl. VAT: € 6.47 / $ 5.78
