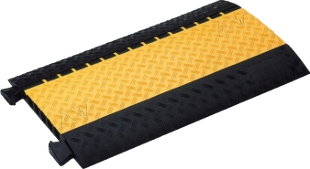

Defender Midi cable crossover


Defender Midi cable crossover

Enlarge Enlarge Enlarge Enlarge The latest innovation, in response to numerous customer requests: A system intermediate between the Defender Compact and the Defender III. This cable crossover features 5 cable ducts, moulded connectors, and a lower height and lighter weight than the Defender III. The load bearing capacity is similar to that of the Defender III.

Basic module with patented interlocking lid.

  • Length: 89 cm
  • Width: 54,2 cm
  • Heigth: 5,2 cm
  • Channels: 5
  • Width, channels: 3,4 cm
  • Heigth, channels: 3,6 cm
  • Slope: 17 degrees
  • Material: UV resistant high density pressure moulded Polyurethane
  • Flame class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)
  • Shore A hardness: 88 Shore ± 4 A
  • Load bearing capacity: ca. 5 t (similar to that of the Defender III)
  • Oil-, acid- and gasoline-resistant
  • Temperature range: - 30° C to + 60° C

Laser labelling on request (see template and requirements in download section).

PDF data sheet Technical drawing

PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per piece   (Order No ah-85300) EUR 199,00 excl. VAT: € 167.23 / $ 146.69

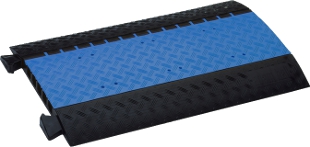

Defender Midi blue for Wheelchair ramp

Enlarge Enlarge Punched Defender Midi cable crossover for Wheelchair ramp, blue.

Technical Data:

  • Blue Defender Midi cable crossover, pre-drilled: ensures that the ramp doesn t slide from the cable crossover
  • Oil-, acid- and gasoline-resistant

Optional Set consists of:

  • 6 ramp modules
  • 4 extremity pieces (2x left / 2x right)
  • 1 Midi cable crossover blue, pre-drilled

Please note:

The Defender Wheelchair Ramp does not support vehicle traffic

price per piece   (Order No ah-85300BLUE) EUR 221,00 excl. VAT: € 185.71 / $ 162.91



Defender MIDI end ramp

Enlarge Enlarge End ramp for cable outlet reduces the risk of tripping.

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per piece   (Order No ah-85308) EUR 77,00 excl. VAT: € 64.71 / $ 56.76

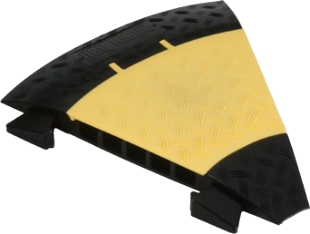

Defender Midi Cable Crossover 45 degree curve with connection

Enlarge Enlarge Enlarge Cable Crossover 45 degree curve with connection.

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per piece   (Order No ah-85310) EUR 141,00 excl. VAT: € 118.49 / $ 103.94
